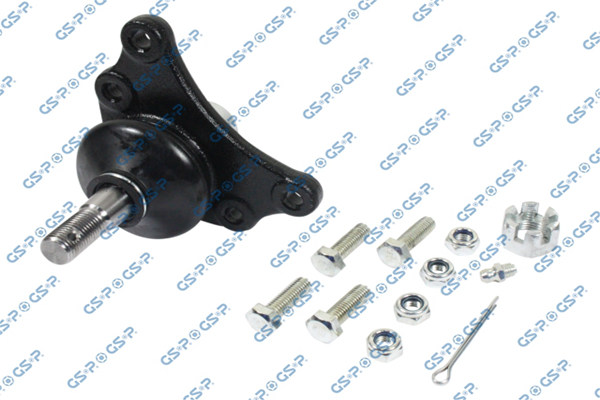

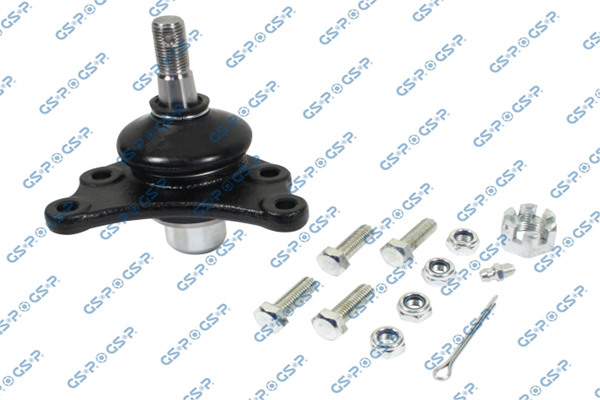

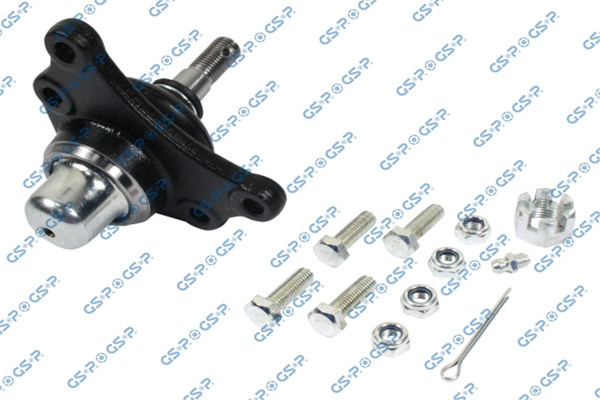

Toyota (2.4, 2.7, 3.0, 3.4 - RWD) Suspension Ball Joint - Front Upper
SPECIFICATIONS
Adjustable
No
Cotter Pin Included
Yes
Dust Boot Material
Neoprene
Greaseable
No
Mounting Hole Quantity
4
Stud Thread Pitch
M14×1.5
Washers Included
No
Castle Nut Included
Yes
Dust Boot Included
Yes
Grease Fitting Included
No
Mount Plate Included
Yes
Mounting Type
Bolt-On
Stud Type
Threaded
FEATURES & BENEFITS
APPLICATIONS
Year Range | Make | Model | SubModels | Position |
|---|---|---|---|---|
1998-1998 | Toyota | T100 | Base | Front Upper |
1996-1998 | Toyota | T100 | Base, SR5 | Front Upper |
1996-1997 | Toyota | T100 | DLX | Front Upper |
1995-1995 | Toyota | T100 | Base, One-Ton DLX, DX, SR5 | Front Upper |
1994-1994 | Toyota | T100 | Base, DX | Front Upper |
1993-1994 | Toyota | T100 | SR5 | Front Upper |
1993-1993 | Toyota | T100 | One-Ton, Base | Front Upper |
1993-1993 | Toyota | Pickup | Base | Front Upper |
1992-1992 | Toyota | Pickup | Base | Front Upper |
1990-1995 | Toyota | Pickup | DLX, Base, SR5 | Front Upper |
1990-1991 | Toyota | Pickup | Base | Front Upper |
1990-1990 | Toyota | Pickup | SR5 | Front Upper |
