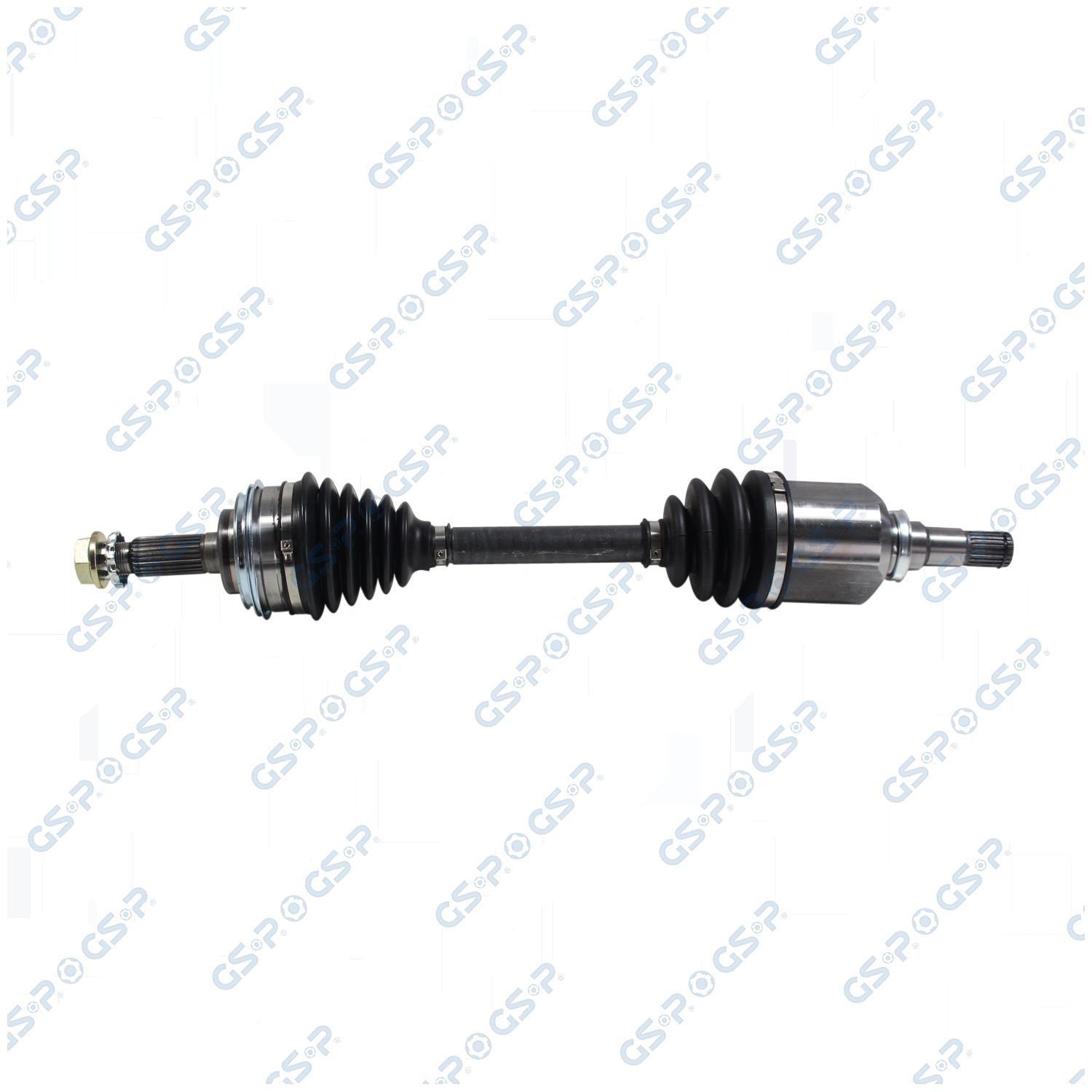

Chevrolet, Geo, Toyota (FWD) CV Axle Assembly - Front Left
SPECIFICATIONS
ABS Tone Ring Included
No
Axle Nut Length
0.87
Axle Nut Type
Hex
Boot Material
Neoprene
Compressed Length
23.39
Inboard Spline Quantity
23
Outboard Spline Quantity
26
Seal Diameter
2.20
Axle Nut Included
Yes
Axle Nut Thread Size
M19×1.5
Boot Color
Black
California Proposition 65
Yes
Inboard Joint Type
Male
Outboard Joint Type
Conventional
Prop 65 Yes/No
Yes
FEATURES & BENEFITS
APPLICATIONS
Year Range | Make | Model | SubModels | Position |
|---|---|---|---|---|
1989-1992 | Geo | Prizm | Front Left | |
1987-1992 | Toyota | Corolla | Front Left | |
1985-1988 | Chevrolet | Nova | Front Left |
