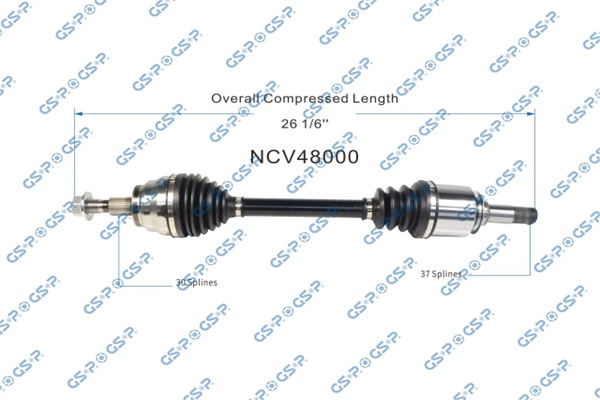

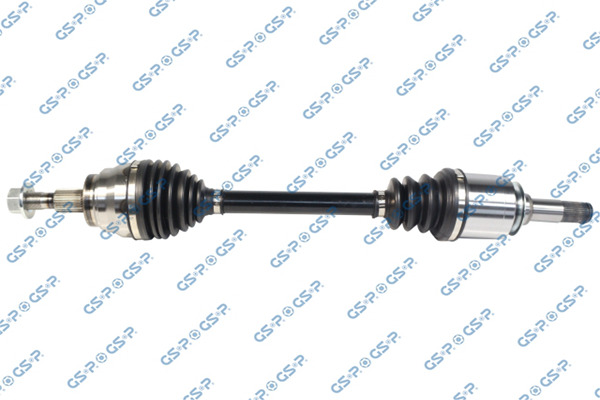

Mercedes-Benz (3.0, 3.5 - 4WD/AWD) CV Axle Assembly - Front Left

Part Number:

NCV48000

Product Type:

CV Components

​

SPECIFICATIONS

ABS Tone Ring Included

No

Axle Nut Length

0.85

Axle Nut Type

Hex

Boot Material

Neoprene

Compressed Length

26.18

Inboard Spline Quantity

37

Outboard Spline Quantity

30

Seal Diameter

2.76

Axle Nut Included

Yes

Axle Nut Thread Size

M24×1.5

Boot Color

Black

California Proposition 65

Yes

Inboard Joint Type

Male

Outboard Joint Type

Conventional

Prop 65 Yes/No

Yes

FEATURES & BENEFITS

​

APPLICATIONS

Year Range
Make
Model
SubModels
Position
2010-2012
Mercedes-Benz
GL350
Front Left
2010-2011
Mercedes-Benz
ML450
Front Left
2010-2011
Mercedes-Benz
ML350
Front Left
2010-2010
Mercedes-Benz
ML350
Front Left
2008-2011
Mercedes-Benz
ML550
Front Left
2008-2012
Mercedes-Benz
GL550
Front Left
2007-2012
Mercedes-Benz
GL450
Front Left
2007-2009
Mercedes-Benz
GL320
Front Left
2007-2009
Mercedes-Benz
ML320
Front Left
2006-2009
Mercedes-Benz
ML350
Front Left
2006-2007
Mercedes-Benz
ML500
Front Left
