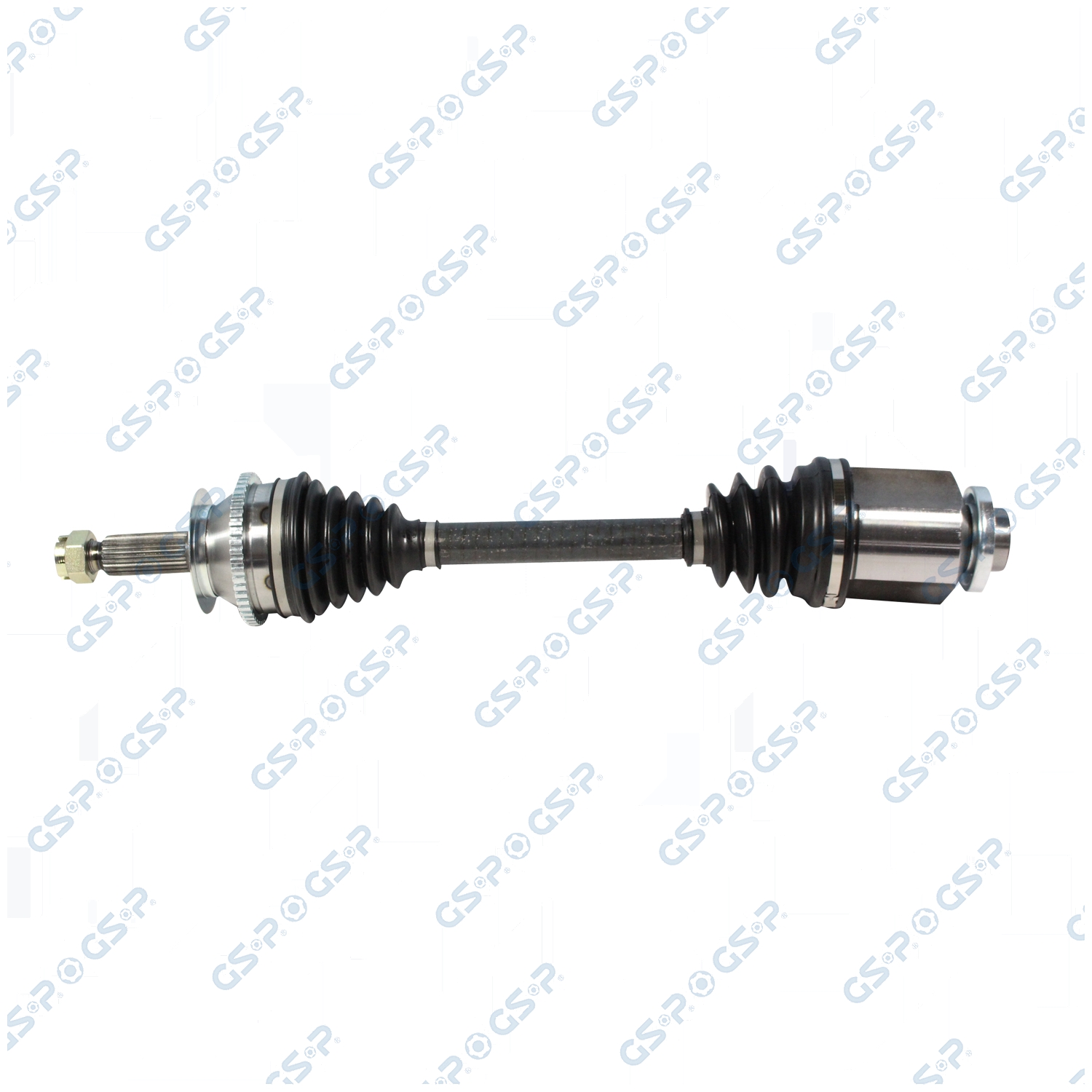

04-06 Hyundai Santa Fe (3.5 - FWD) CV Axle Assembly - Front Right
SPECIFICATIONS
ABS Tone Ring Included
Yes
Axle Nut Included
Yes
Axle Nut Thread Size
M22×1.5
Boot Color
Black
California Proposition 65
Yes
Inboard Joint Type
Female
Outboard Joint Type
Conventional
Prop 65 Yes/No
Yes
ABS Tone Ring Tooth Quantity
52
Axle Nut Length
0.83
Axle Nut Type
Hex
Boot Material
Neoprene

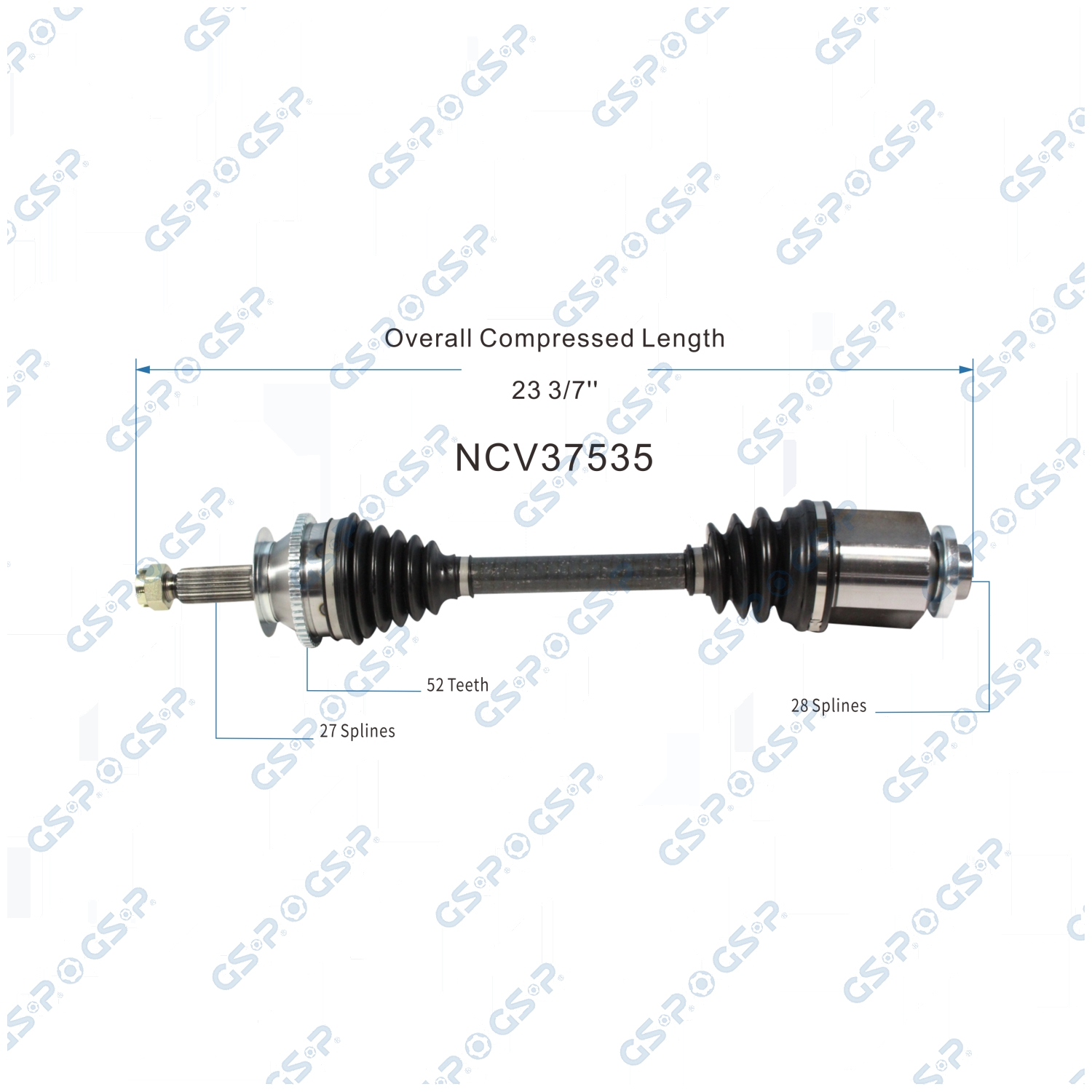

Compressed Length
23.43
Inboard Spline Quantity
28
Outboard Spline Quantity
27
Seal Diameter
2.36
FEATURES & BENEFITS
APPLICATIONS
Year Range | Make | Model | SubModels | Position |
|---|---|---|---|---|
2006-2006 | Hyundai | Santa Fe | Front Right | |
2004-2005 | Hyundai | Santa Fe | GLS, LX | Front Right |
