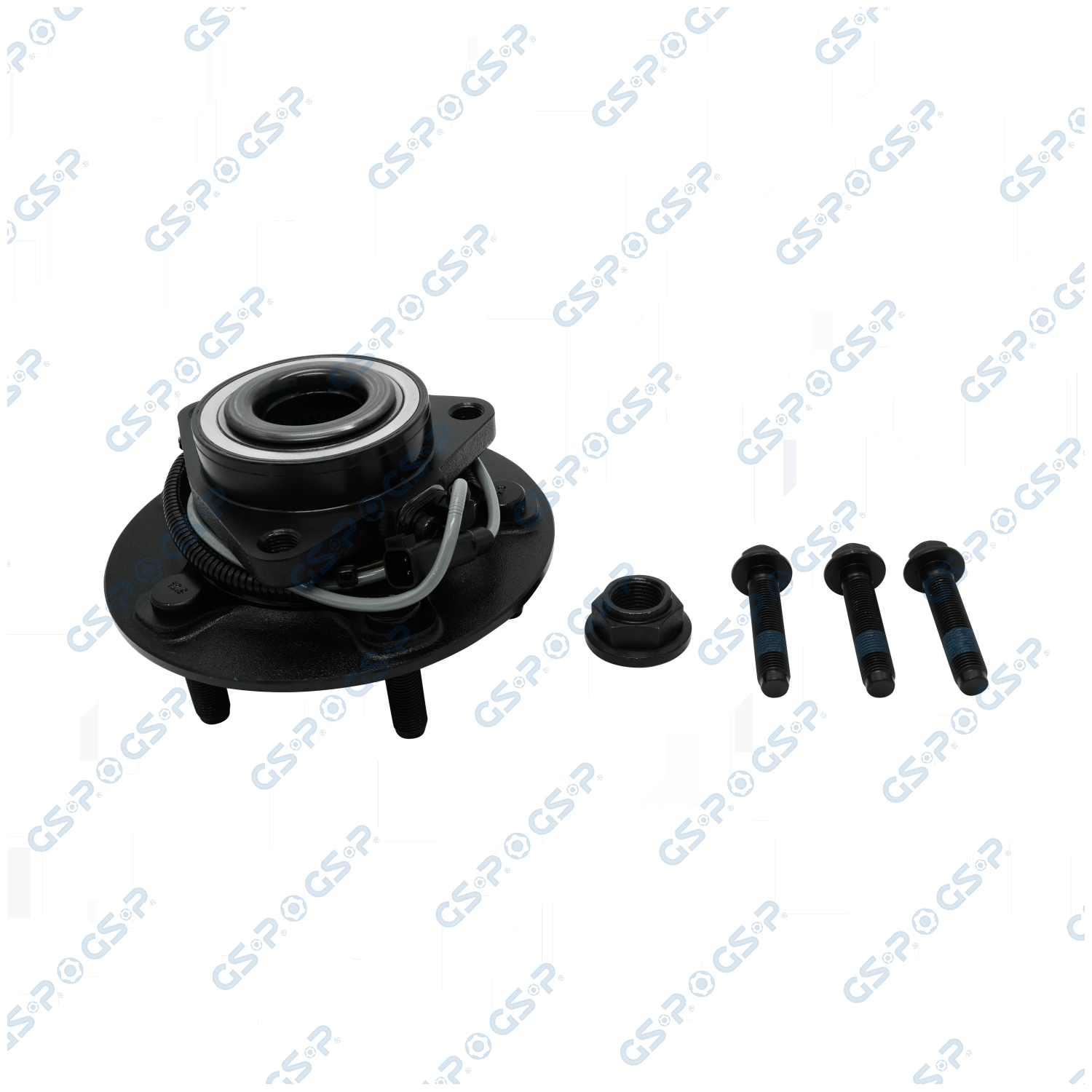

Ram Wheel Bearing and Hub Assembly - Front
SPECIFICATIONS
ABS Tone Ring Tooth Quantity
55
Anti Lock Braking System Type
Cable
Bearing Type
Roller
Brake Pilot Diameter
78.5
Flange Bolt Hole Quantity
5
Flange Offset
47
Prop 65 Yes/No
Yes
Wheel Pilot Diameter
77.8
Anti Lock Braking System
Yes
Bearing Generation
Gen 3
Bolt Circle Diameter
139.7
California Proposition 65
Yes
Flange Diameter
183
Hub Pilot Diameter
90
Spline Quantity
33
Wheel Stud Thread Size
M14x1.5
FEATURES & BENEFITS
APPLICATIONS
Year Range | Make | Model | SubModels | Position |
|---|---|---|---|---|
2019-2022 | Ram | 1500 Classic | Front | |
2018-2018 | Ram | 1500 | Big Horn, Express, Laramie, Laramie Longhorn, SLT, Sport, Tradesman, Limited, Lone Star, Rebel, Special Service | Front |
2014-2017 | Ram | 1500 | Front | |
2013-2013 | Ram | 1500 | HFE, R/T | Front |
2012-2013 | Ram | 1500 | Big Horn, Express, Laramie, Laramie Longhorn, SLT, Sport, Tradesman, Outdoorsman | Front |
2012-2012 | Ram | 1500 | ST | Front |
