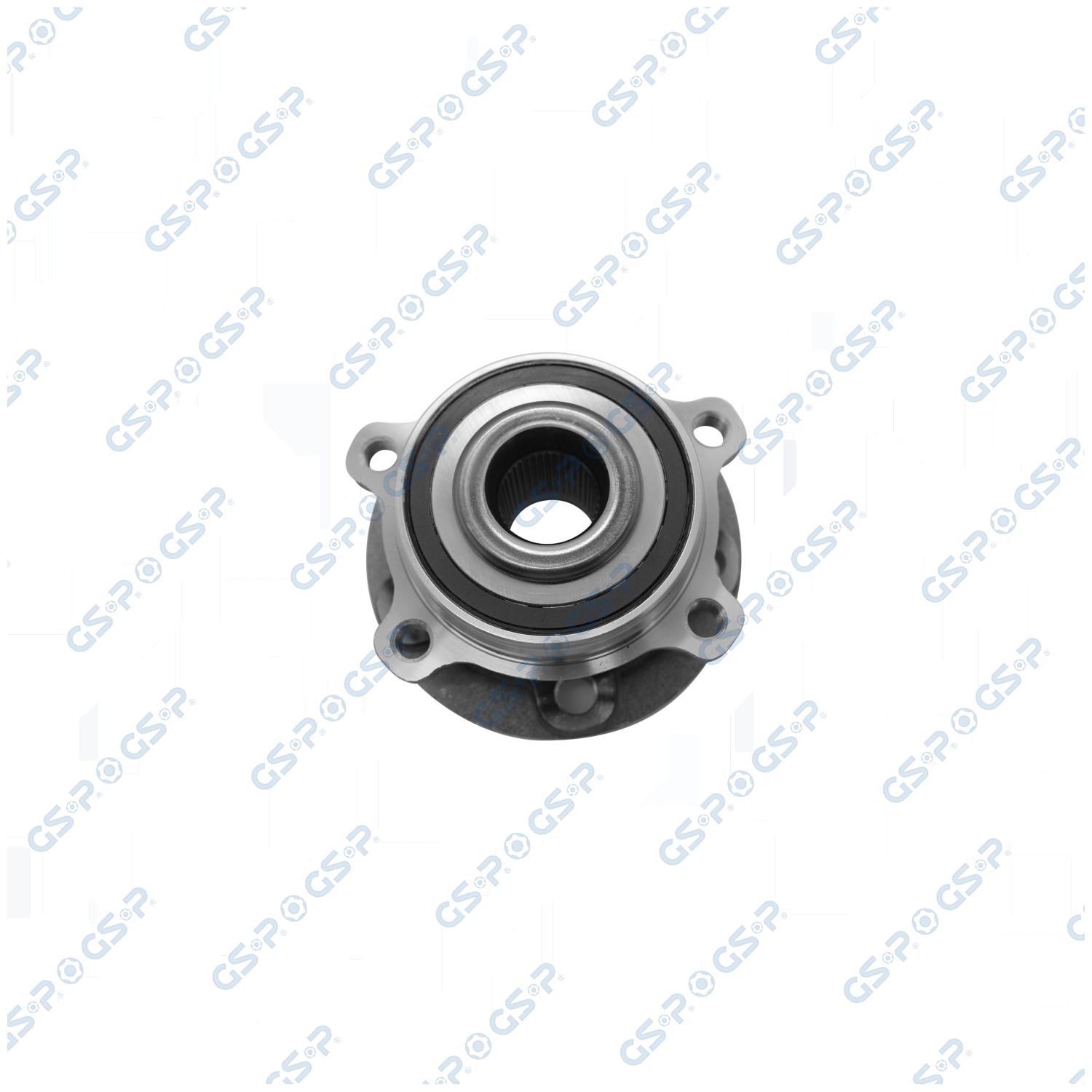

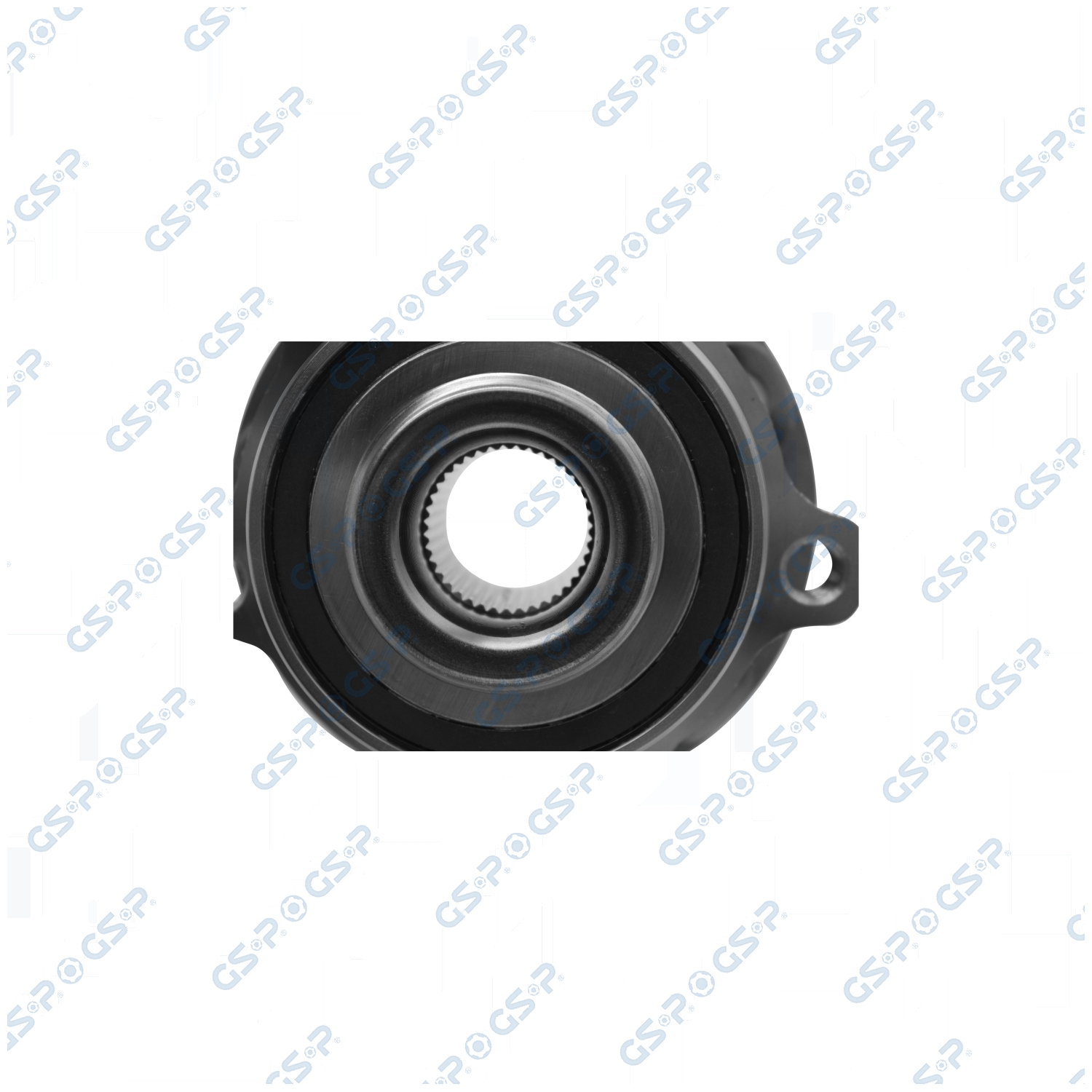

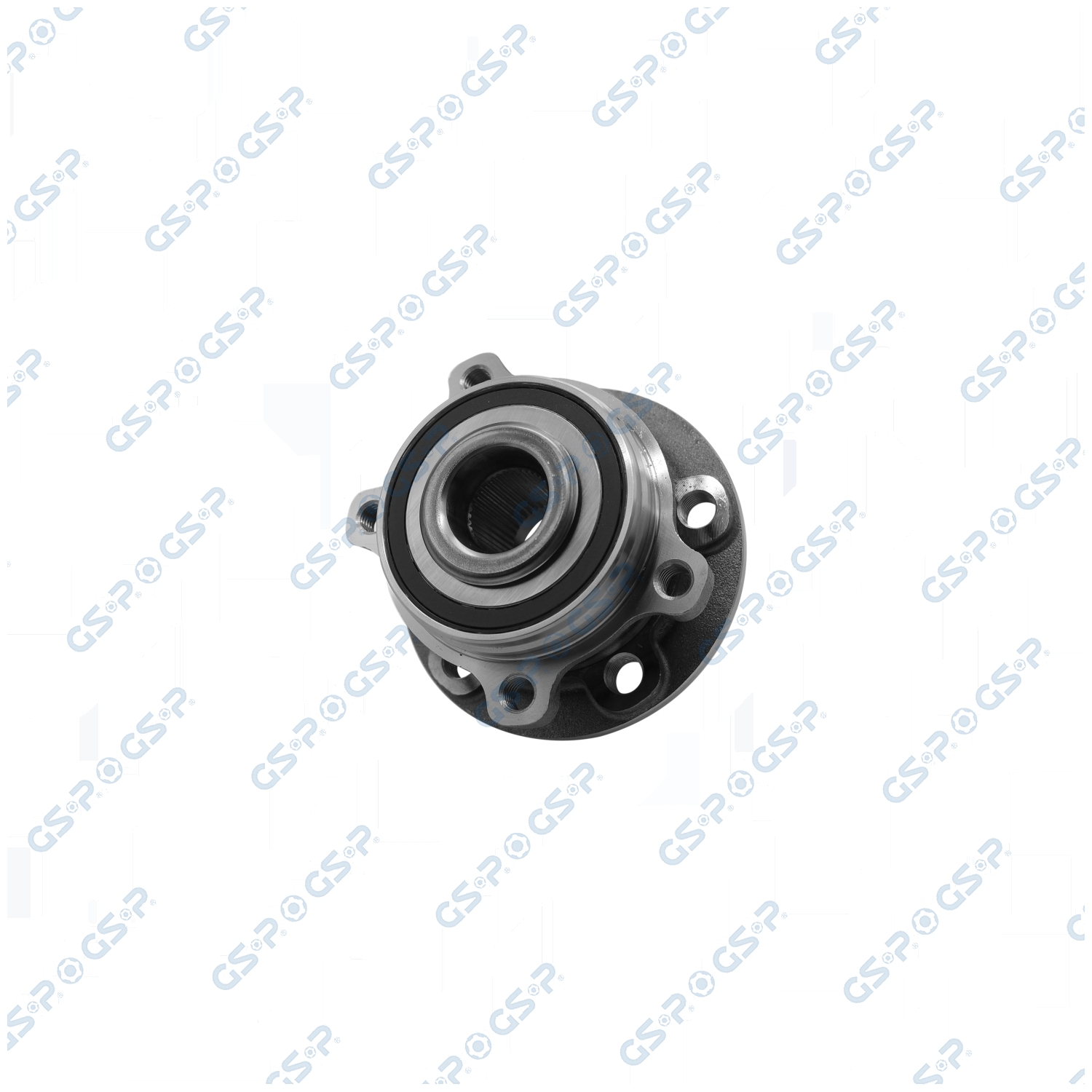

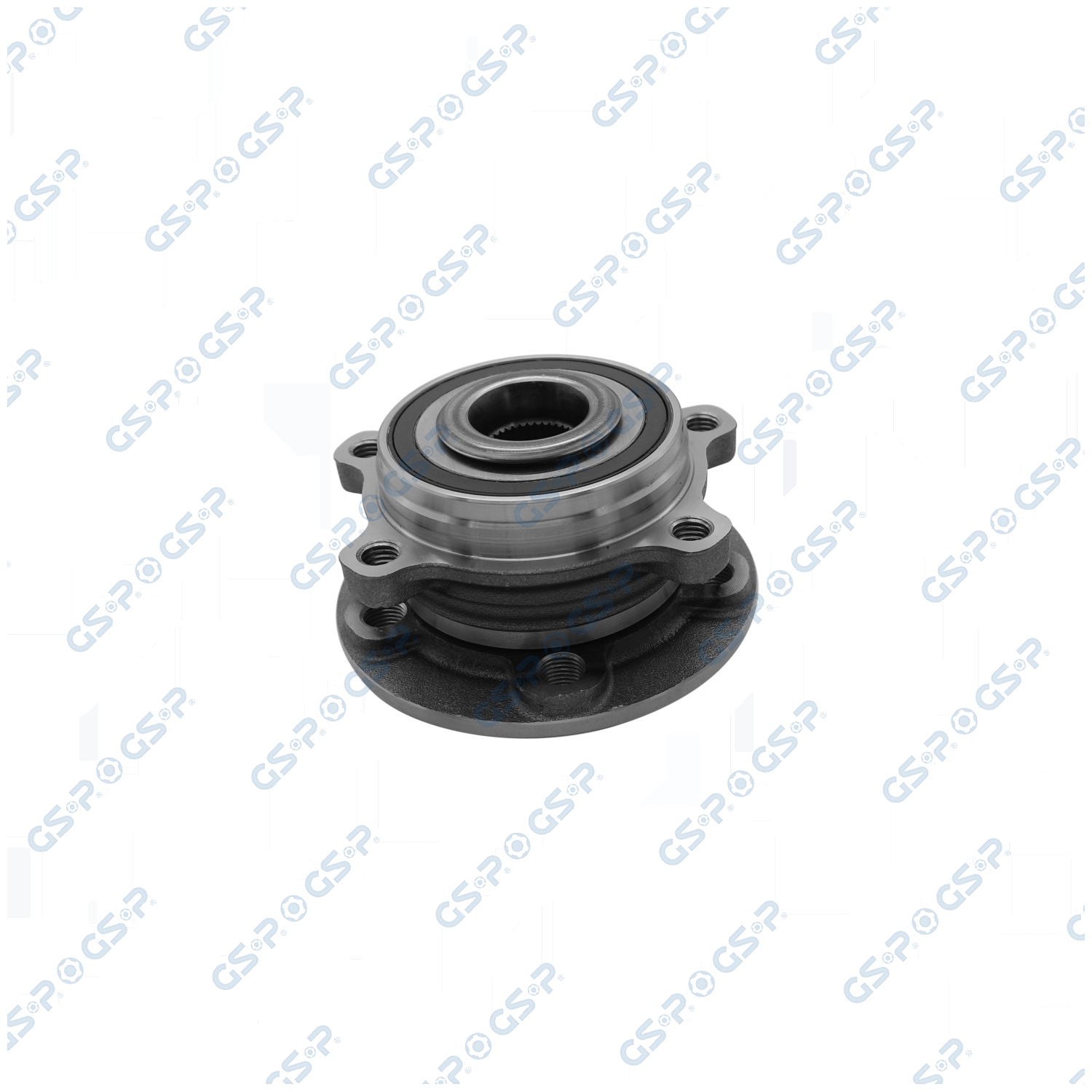

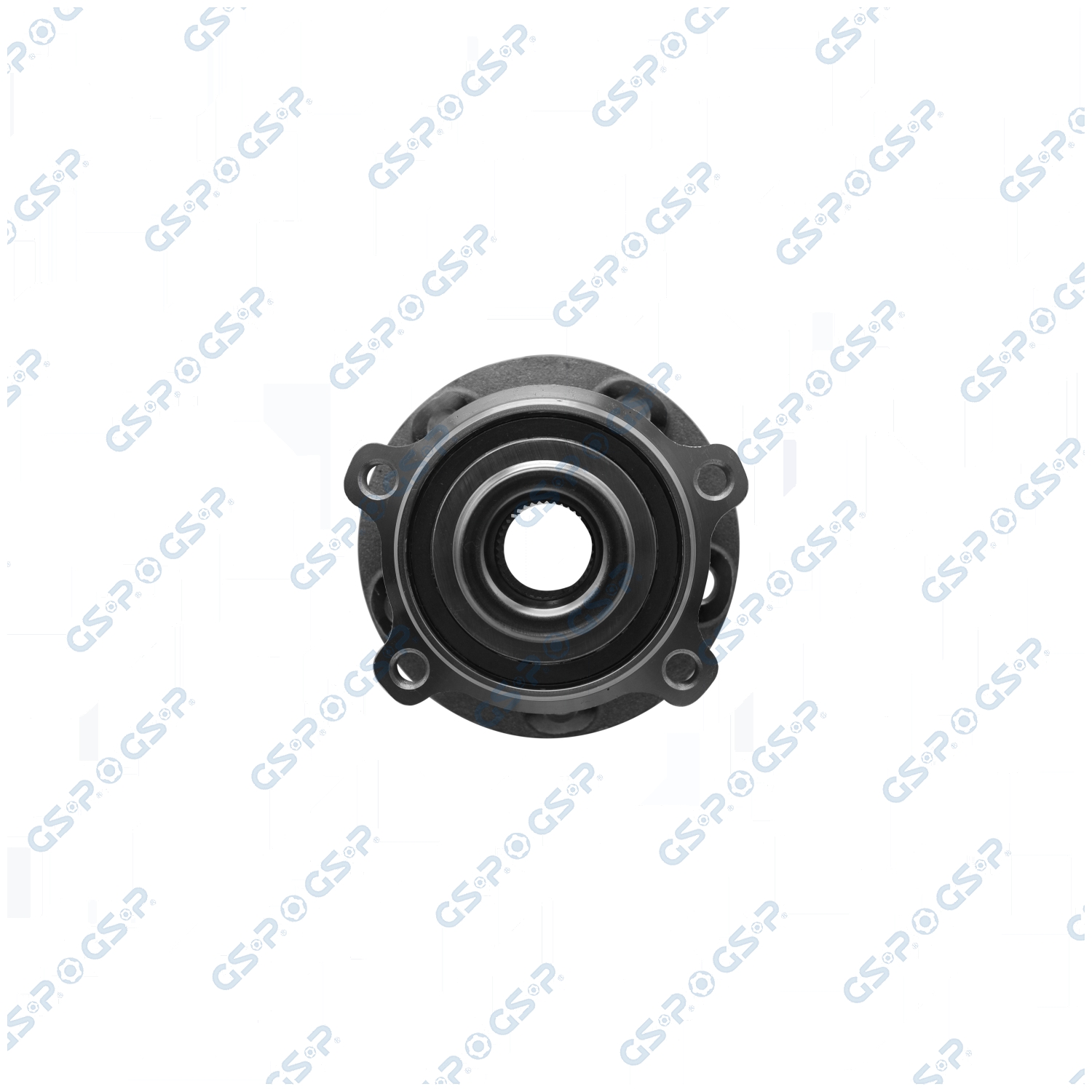

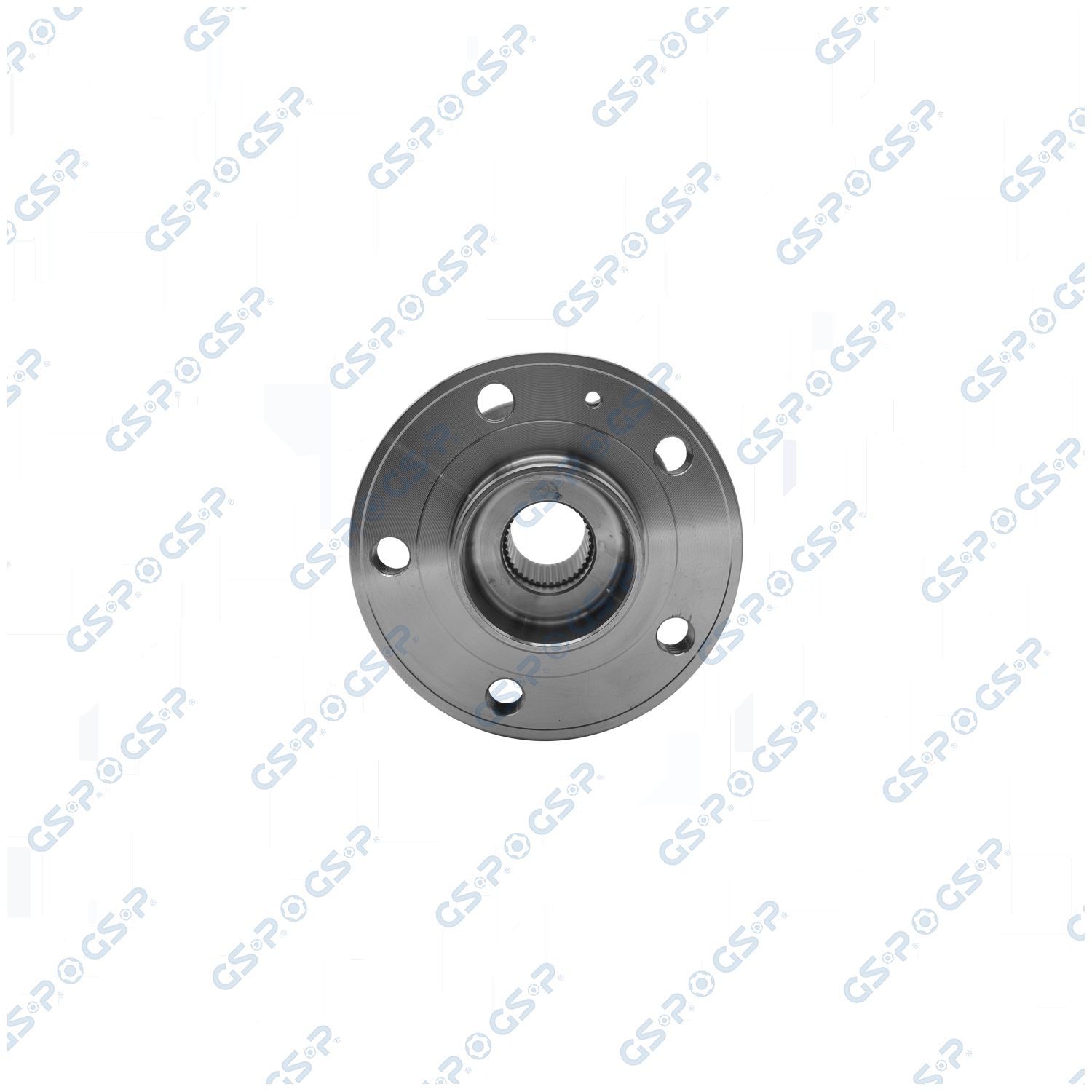

Volvo (AWD) Wheel Bearing and Hub Assembly
SPECIFICATIONS
ABS Tone Ring Tooth Quantity
48
Anti Lock Braking System Type
Encoder
Bearing Type
Ball
Brake Pilot Diameter
63.5
Flange Bolt Hole Quantity
5
Flange Offset
47.2
Prop 65 Yes/No
Yes
Wheel Pilot Diameter
63.2
Anti Lock Braking System
Yes
Bearing Generation
Gen 3
Bolt Circle Diameter
108
California Proposition 65
Yes
Flange Diameter
136
Hub Pilot Diameter
95
Spline Quantity
40
Wheel Stud Thread Size
M14x1.5
FEATURES & BENEFITS
APPLICATIONS
Year Range | Make | Model | SubModels | Position |
|---|---|---|---|---|
2025-2025 | Volvo | EX40 | Front, Rear | |
2024-2025 | Volvo | XC60 | Front, Rear | |
2024-2025 | Volvo | XC90 | Front, Rear | |
2024-2025 | Volvo | V60 | Front, Rear | |
2023-2023 | Volvo | XC90 | Front, Rear | |
2022-2024 | Volvo | C40 Recharge | Rear, Front | |
2022-2025 | Volvo | S90 | Front, Rear | |
2021-2022 | Volvo | XC90 | T8 Recharge Inscription | Front, Rear |
2021-2023 | Volvo | V60 | T8 Recharge Polestar | Front, Rear |
2021-2024 | Volvo | XC40 Recharge | Front, Rear | |
2020-2020 | Volvo | V60 | T8 Polestar | Front, Rear |
2020-2025 | Volvo | V60 Cross Country | Front, Rear | |
2019-2025 | Volvo | S60 | Front, Rear | |
2019-2022 | Volvo | V60 | T6 Momentum, T6 R-Design | Front, Rear |
2019-2021 | Volvo | V60 | T6 Inscription | Front, Rear |
2018-2023 | Volvo | XC60 | Front, Rear | |
2018-2020 | Volvo | S90 | T8 Inscription | Front, Rear |
2018-2019 | Volvo | S90 | T8 Momentum | Front, Rear |
2018-2021 | Volvo | V90 | T6 Inscription, T6 R-Design | Front, Rear |
2017-2021 | Volvo | S90 | T6 Inscription, T6 Momentum | Front, Rear |
2017-2025 | Volvo | V90 Cross Country | Front, Rear | |
2016-2020 | Volvo | XC90 | Front, Rear |
