22-25 Ford F-150 Lightning Wheel Bearing and Hub Assembly - Rear
SPECIFICATIONS

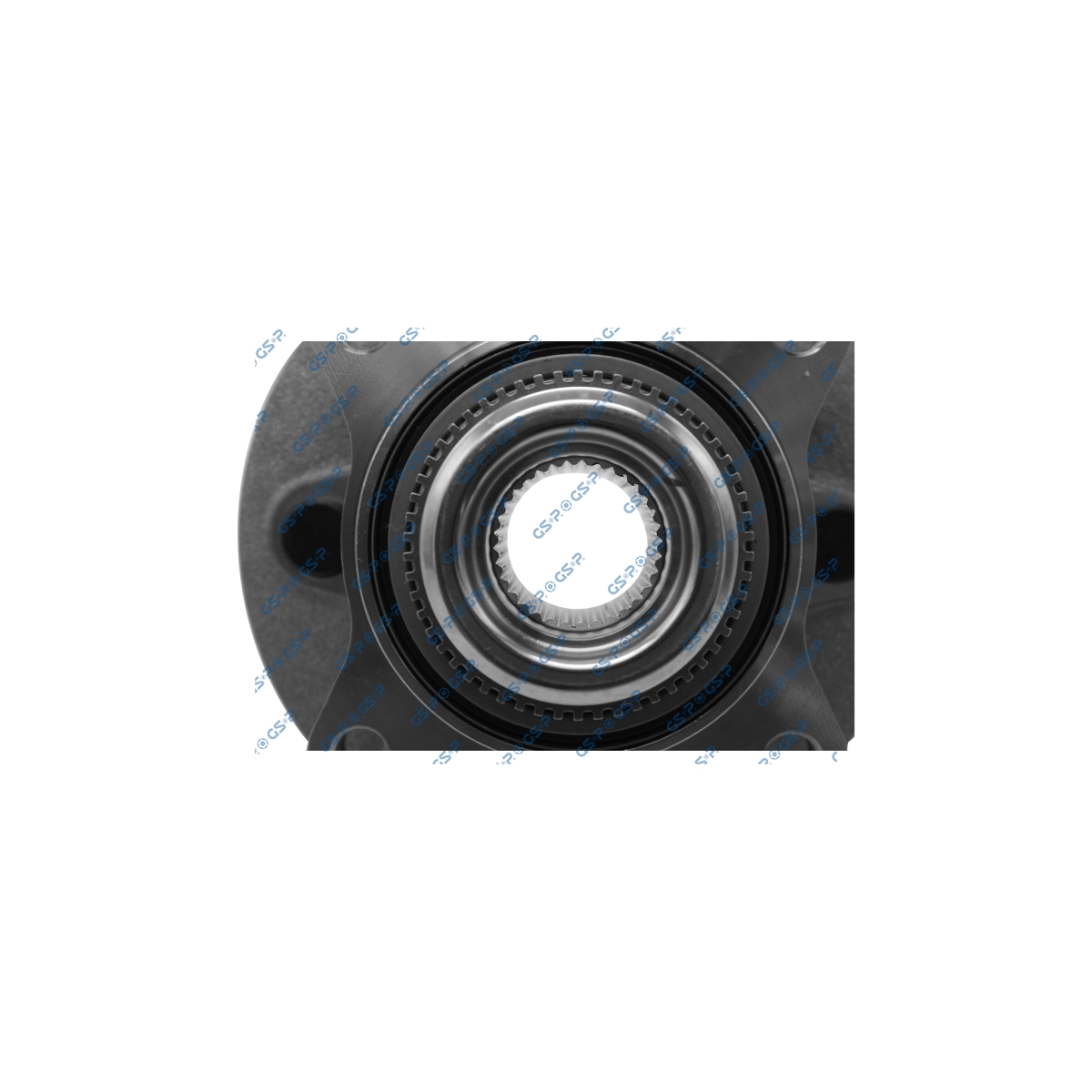

ABS Tone Ring Tooth Quantity
54
Anti Lock Braking System Type
Gear Ring
Bearing Type
Roller
Brake Pilot Diameter
90
Flange Bolt Hole Quantity
6
Flange Offset
45.8
Prop 65 Yes/No
Yes
Wheel Pilot Diameter
86.8
Anti Lock Braking System
Yes
Bearing Generation
Gen 3
Bolt Circle Diameter
135
California Proposition 65
Yes
Flange Diameter
183
Hub Pilot Diameter
99.3
Spline Quantity
34
Wheel Stud Thread Size
M14x1.5
FEATURES & BENEFITS
APPLICATIONS
Year Range | Make | Model | SubModels | Position |
|---|---|---|---|---|
2022-2025 | Ford | F-150 Lightning | Rear |
