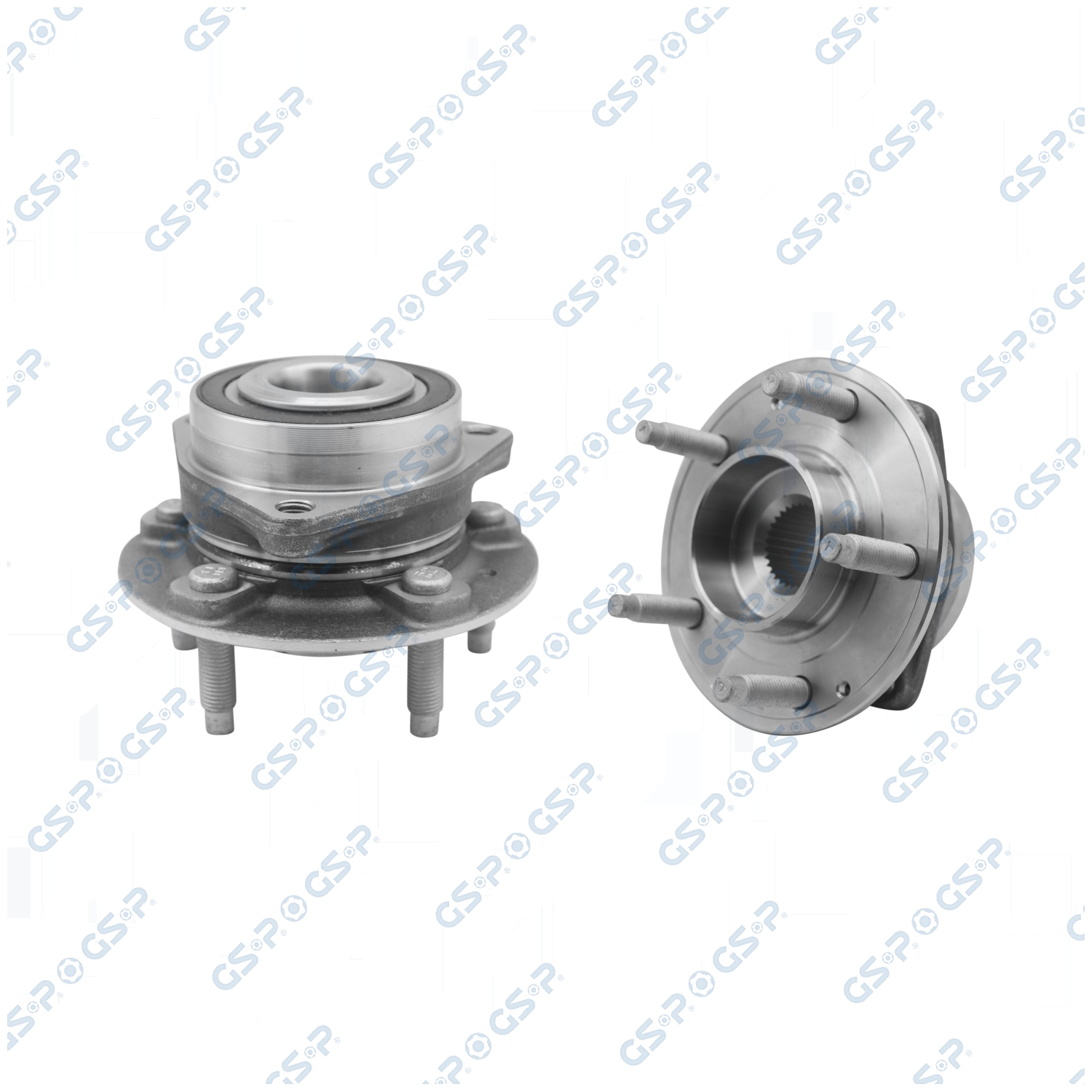

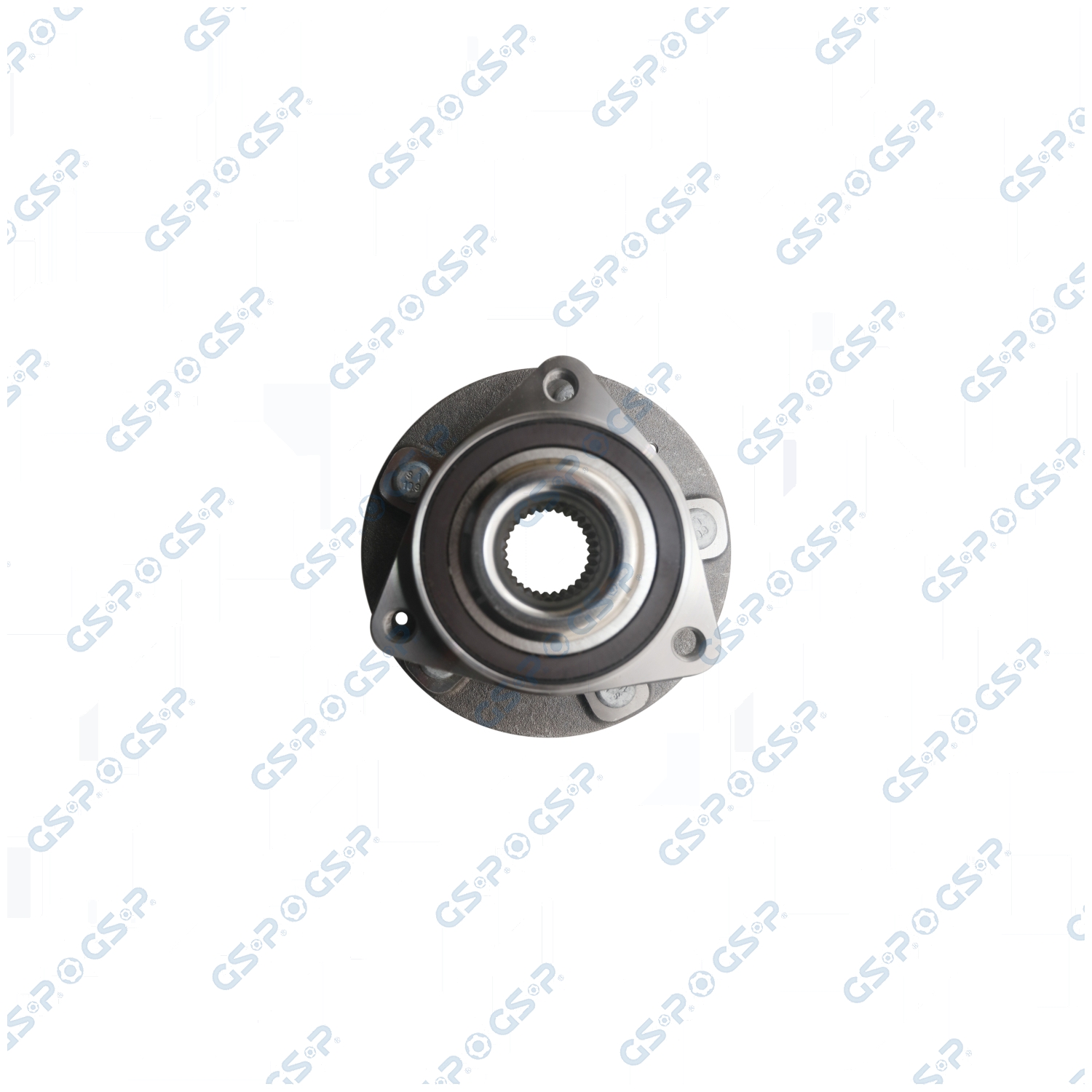

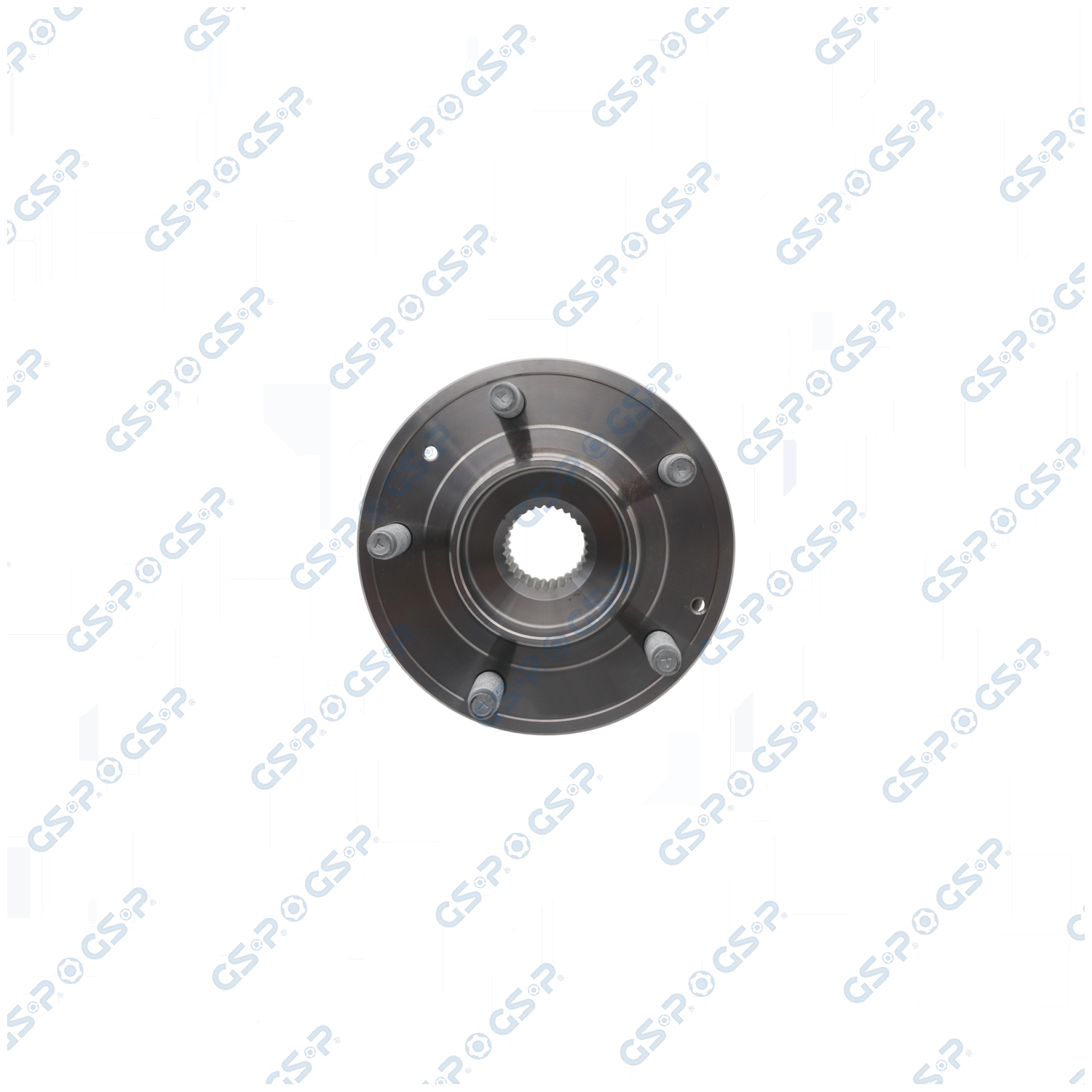

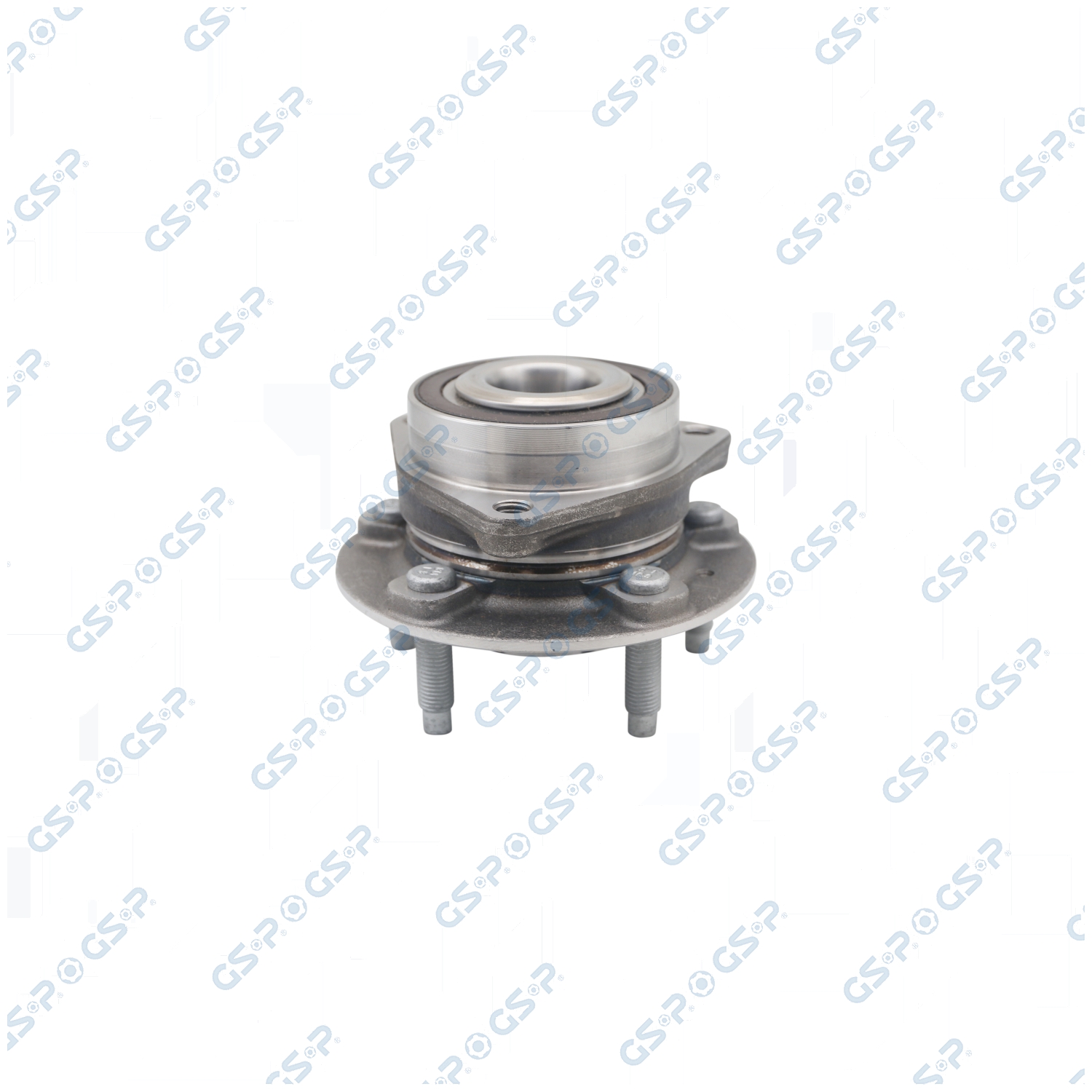

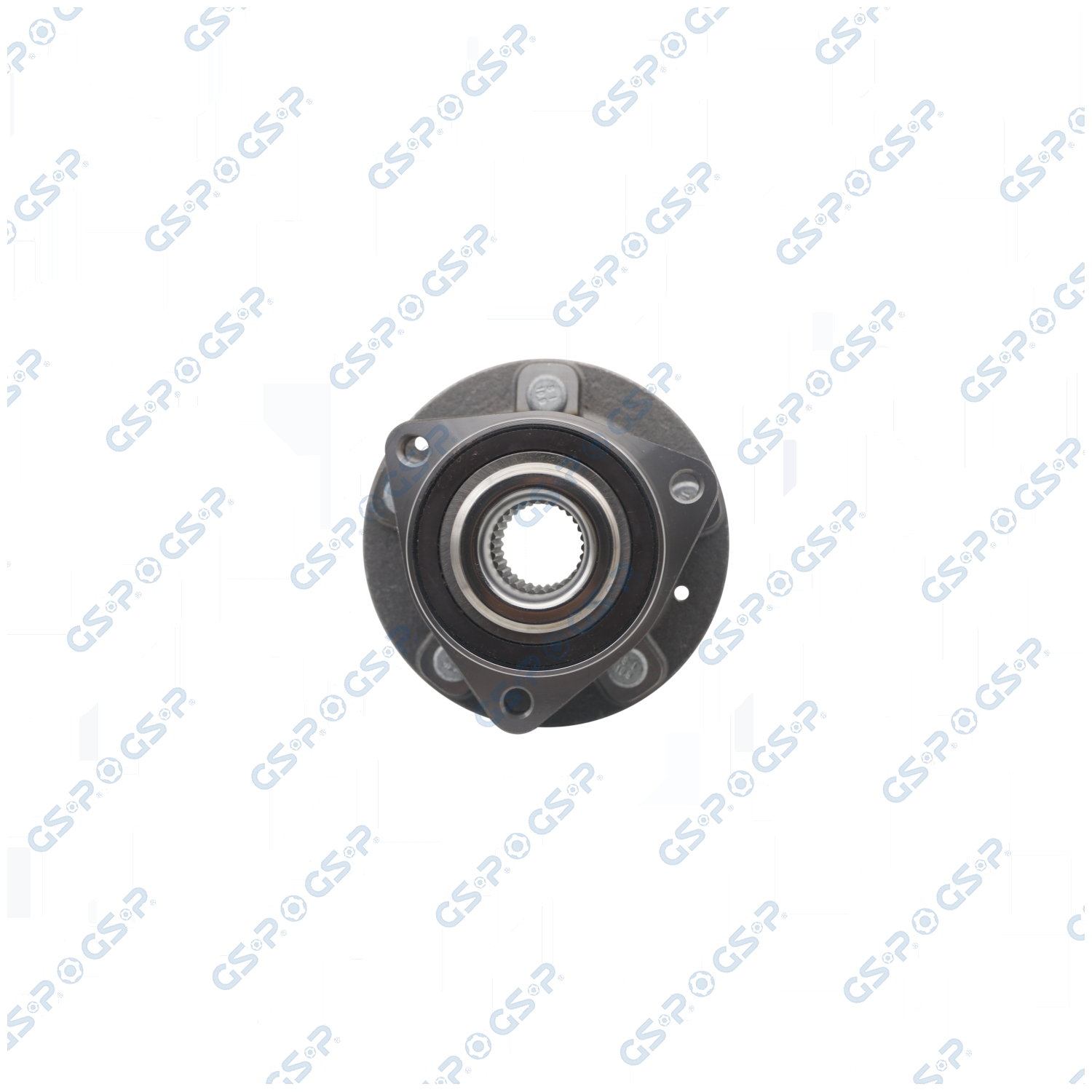

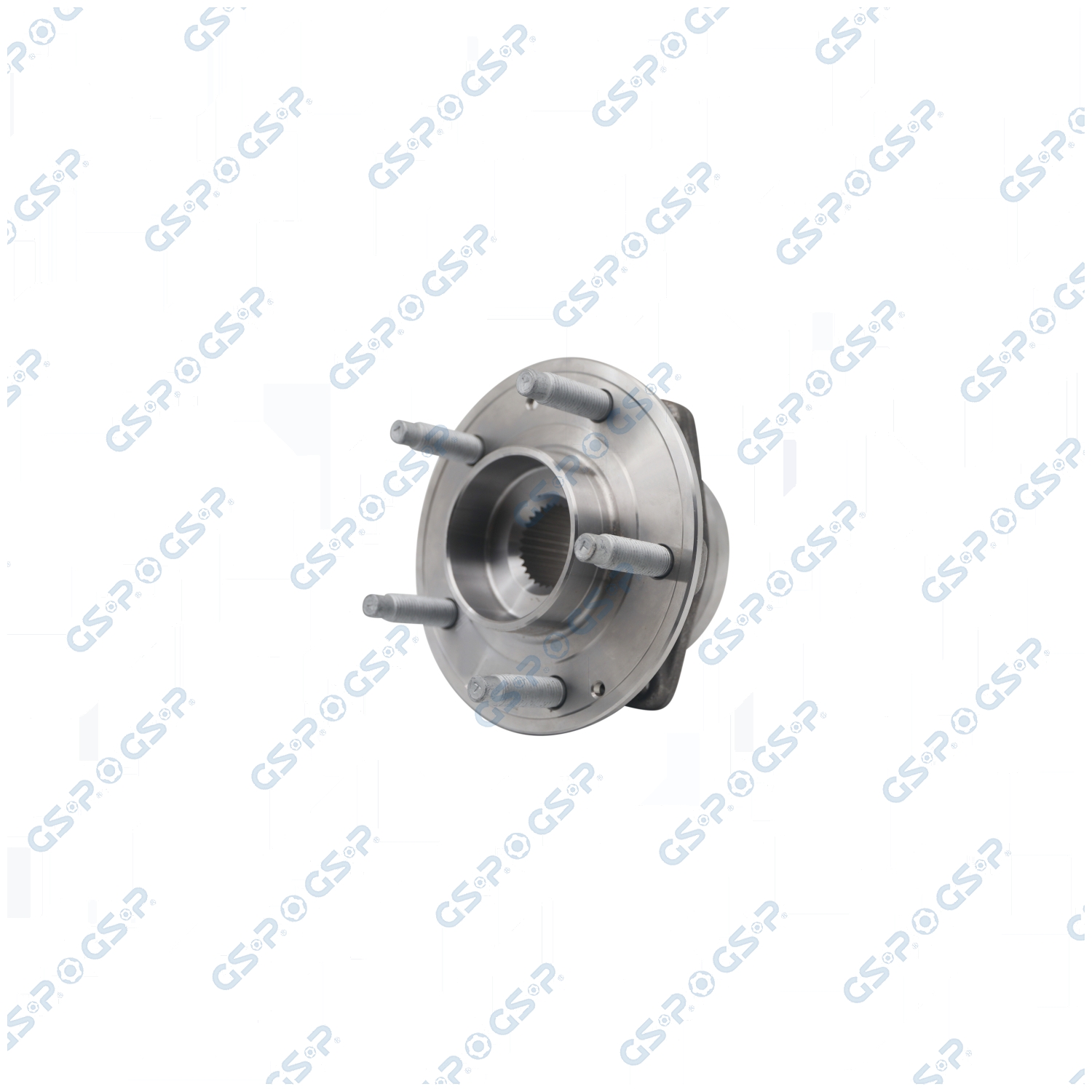

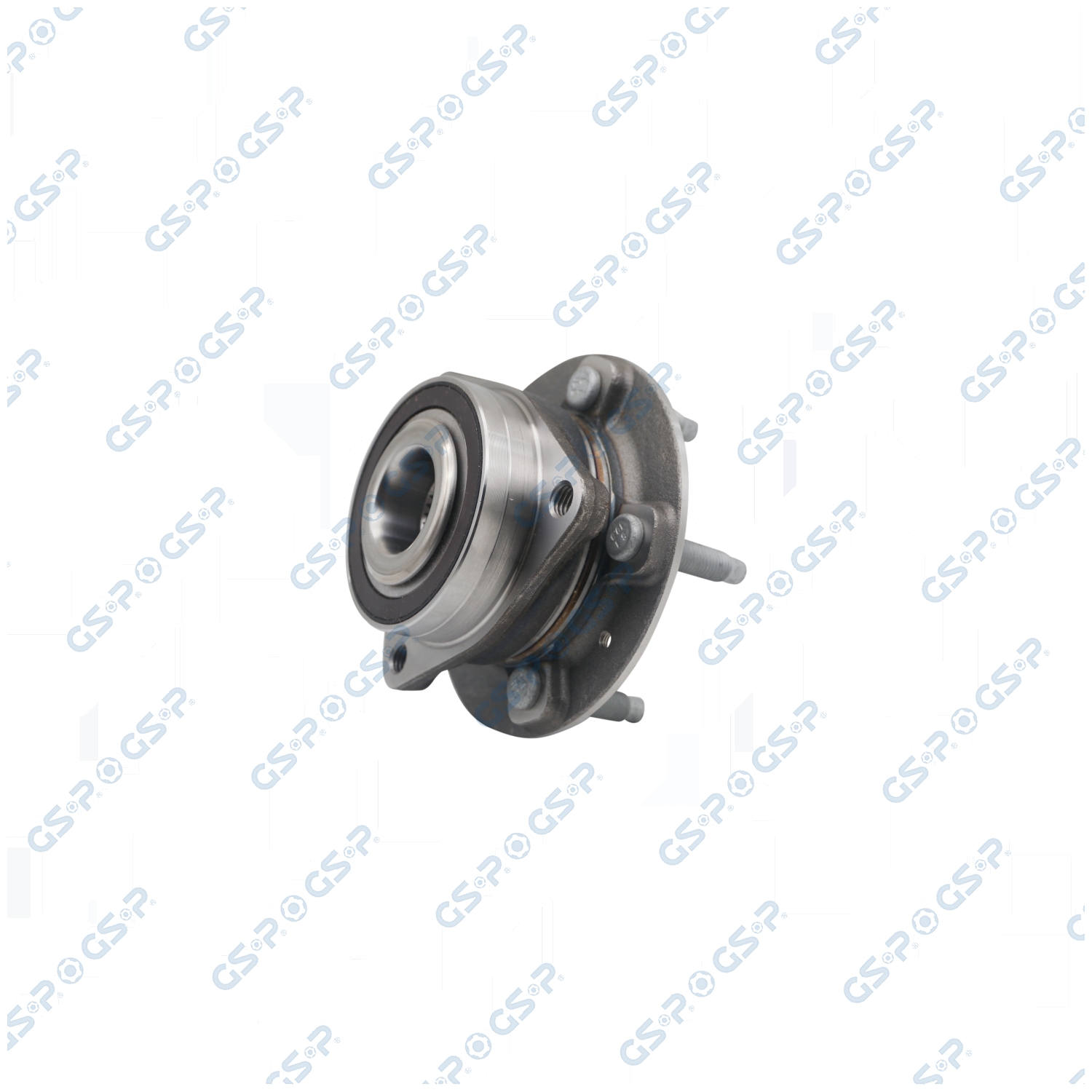

Buick, Cadillac, Chevrolet (AWD/RWD) Wheel Bearing and Hub Assembly
SPECIFICATIONS
ABS Tone Ring Tooth Quantity
48
Anti Lock Braking System Type
Encoder
Bearing Type
Ball
Brake Pilot Diameter
70.6
Flange Bolt Hole Quantity
5
Flange Offset
42
Prop 65 Yes/No
Yes
Wheel Pilot Diameter
70.1
Anti Lock Braking System
Yes
Bearing Generation
Gen 3
Bolt Circle Diameter
115
California Proposition 65
Yes
Flange Diameter
146
Hub Pilot Diameter
91.3
Spline Quantity
30
Wheel Stud Thread Size
M12x1.5
FEATURES & BENEFITS
APPLICATIONS
Year Range | Make | Model | SubModels | Position |
|---|---|---|---|---|
2021-2022 | Chevrolet | Trailblazer | Front | |
2020-2025 | Buick | Encore GX | Front | |
2020-2026 | Cadillac | CT4 | Front, Rear | |
2018-2020 | Buick | Regal Sportback | Front, Rear | |
2018-2019 | Buick | Cascada | Front | |
2018-2020 | Buick | Regal TourX | Front, Rear | |
2017-2019 | Buick | LaCrosse | Rear, Front | |
2016-2020 | Buick | Envision | Front, Rear | |
2016-2023 | Chevrolet | Malibu | Front |
