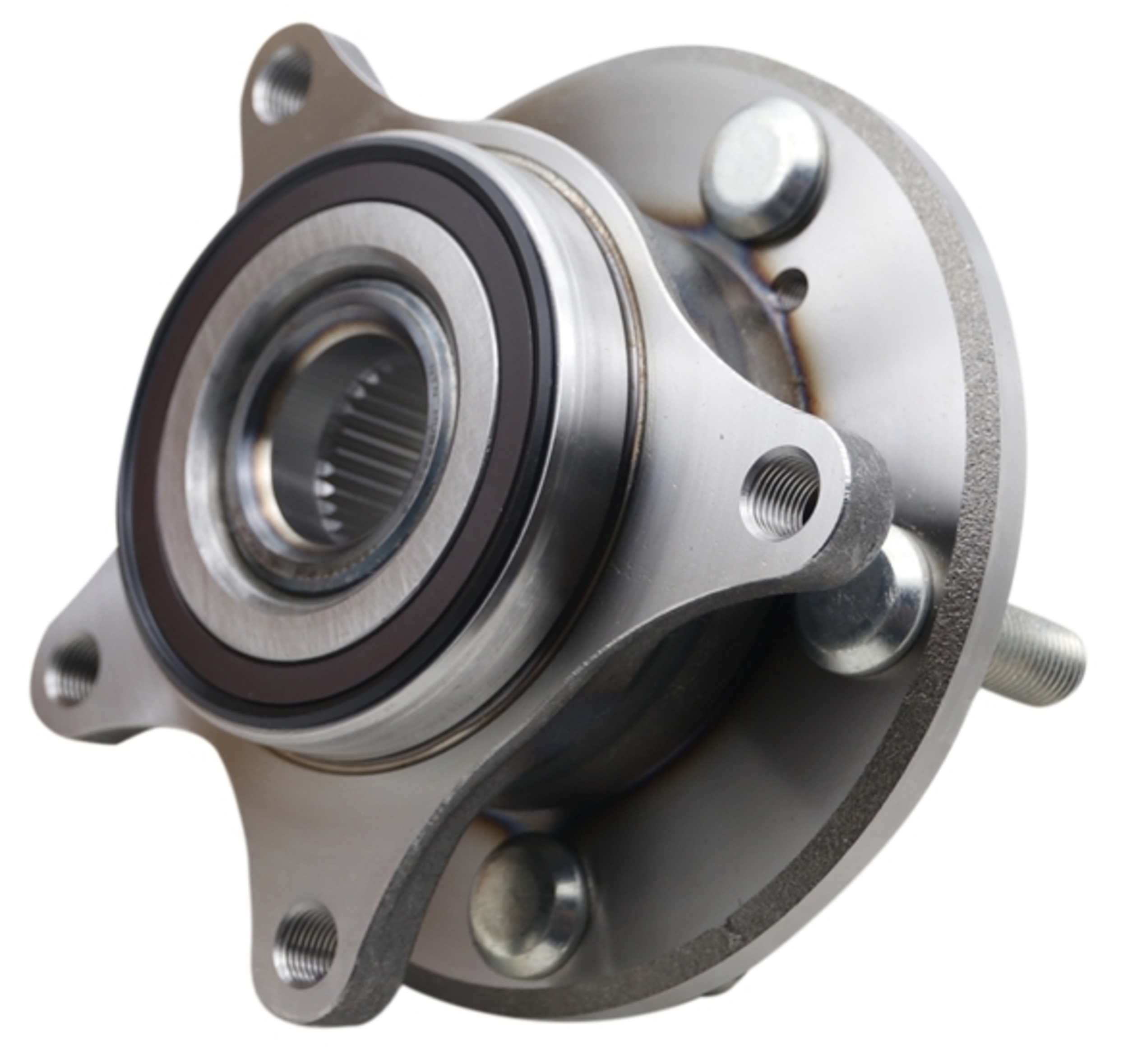

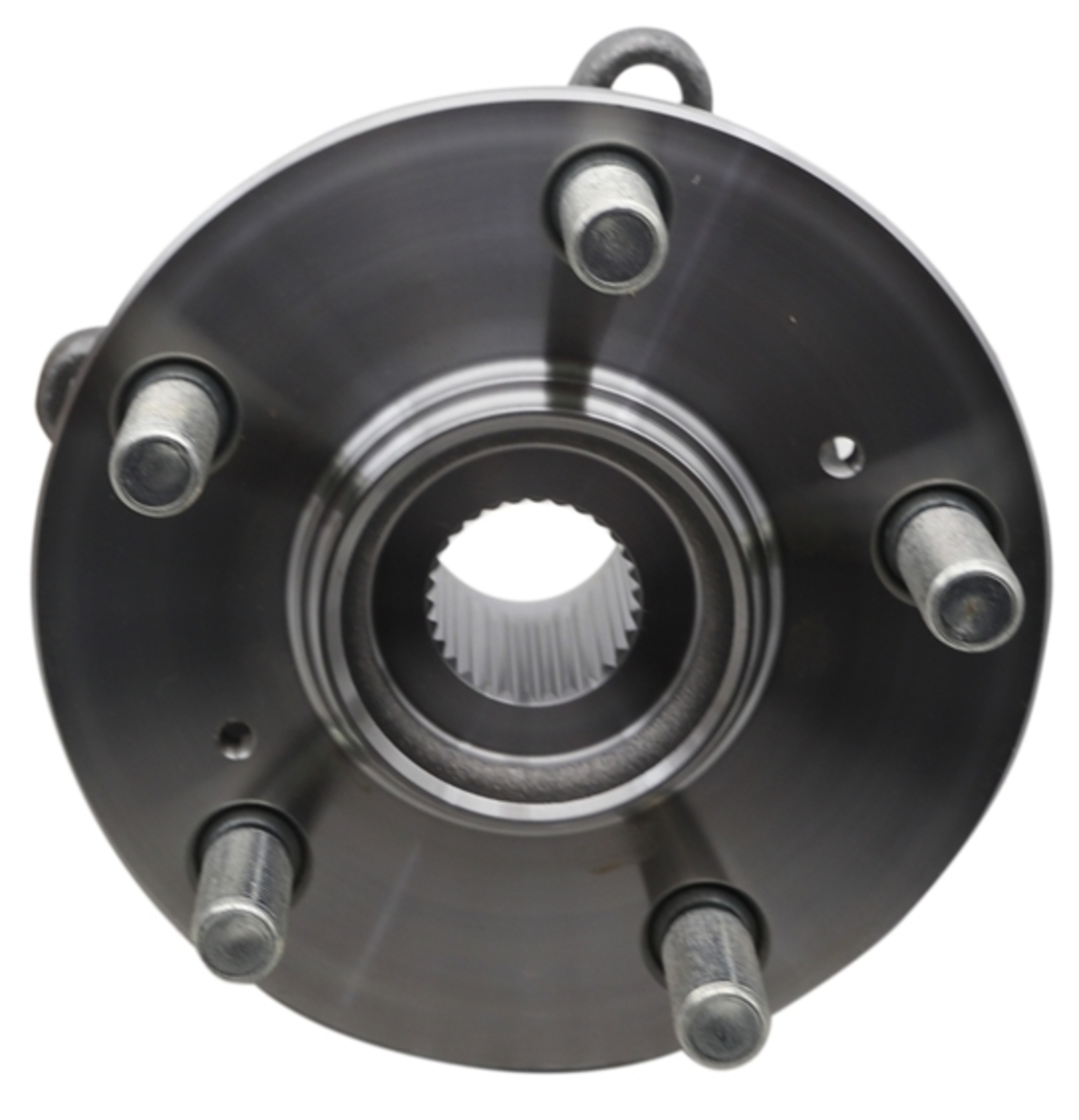

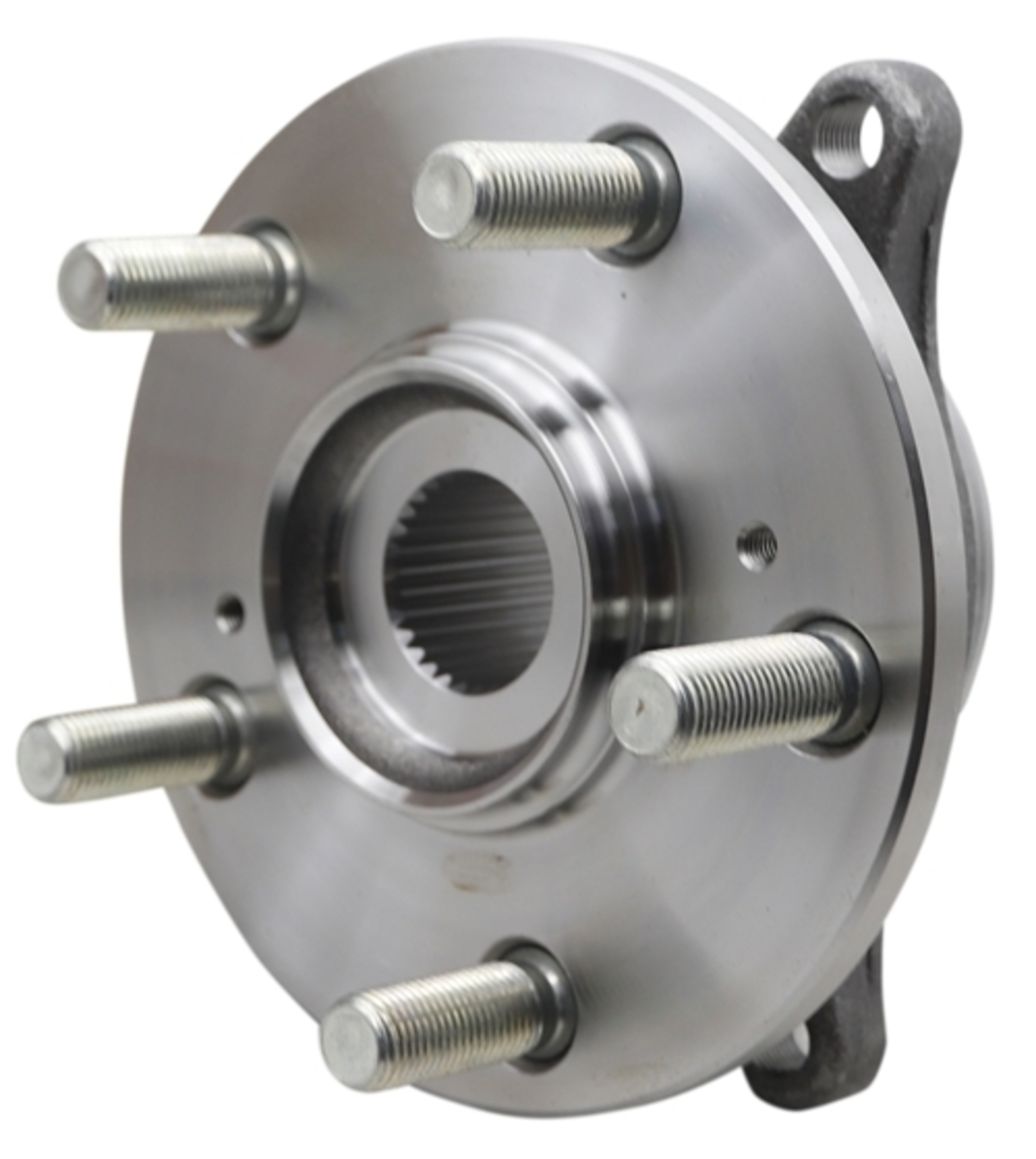

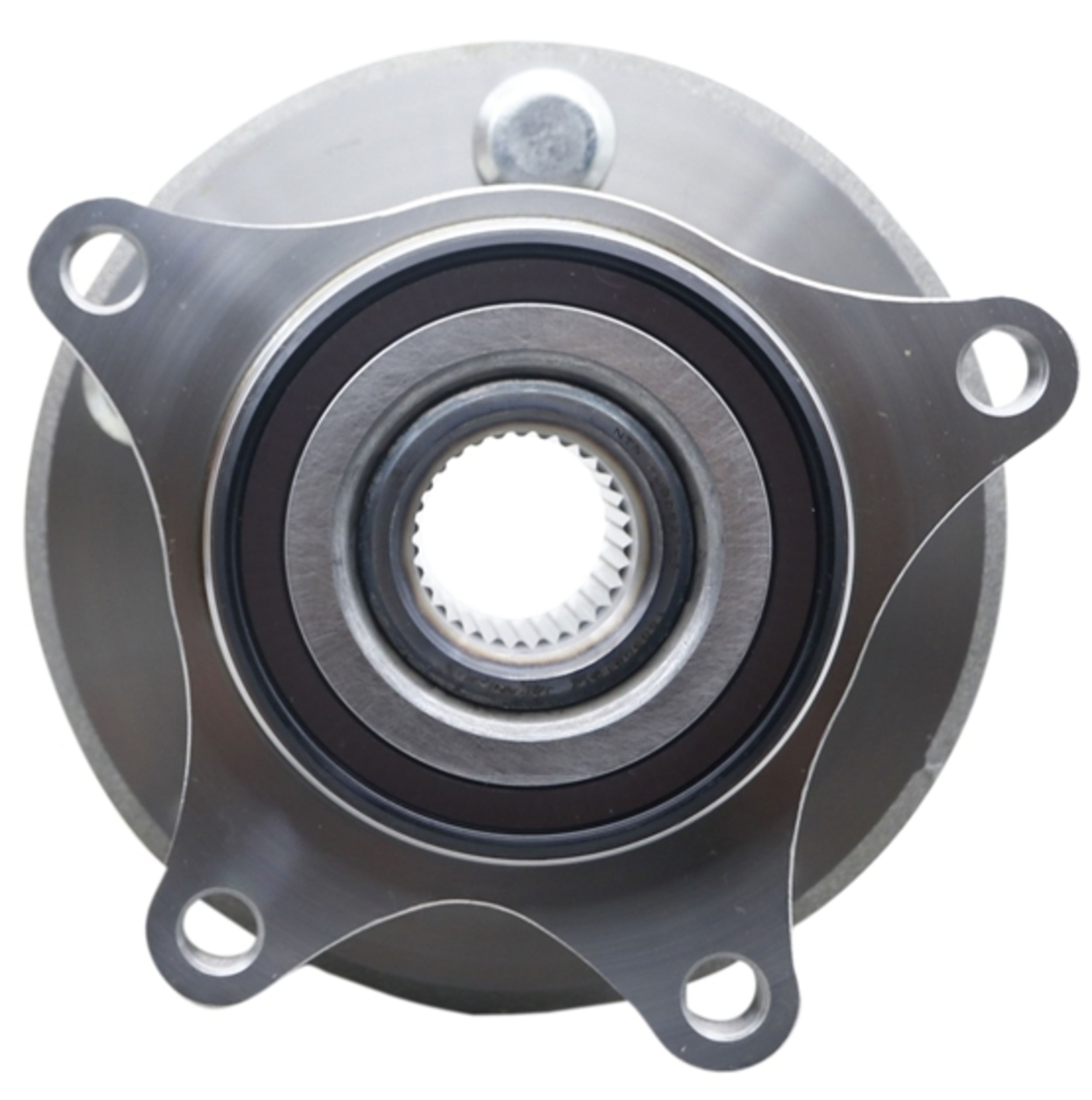

17-21 Honda Civic Wheel Bearing and Hub Assembly - Front
SPECIFICATIONS
ABS Tone Ring Tooth Quantity
48
Anti Lock Braking System Type
Encoder
Bearing Type
Ball
Brake Pilot Diameter
70.1
Flange Bolt Hole Quantity
5
Flange Offset
47.5
Prop 65 Yes/No
Yes
Wheel Pilot Diameter
64.1
Anti Lock Braking System
Yes
Bearing Generation
Gen 3
Bolt Circle Diameter
120
California Proposition 65
Yes
Flange Diameter
152.3
Hub Pilot Diameter
91.1
Spline Quantity
30
Wheel Stud Thread Size
M14x1.5
FEATURES & BENEFITS
APPLICATIONS
Year Range | Make | Model | SubModels | Position |
|---|---|---|---|---|
2017-2021 | Honda | Civic | Front |
