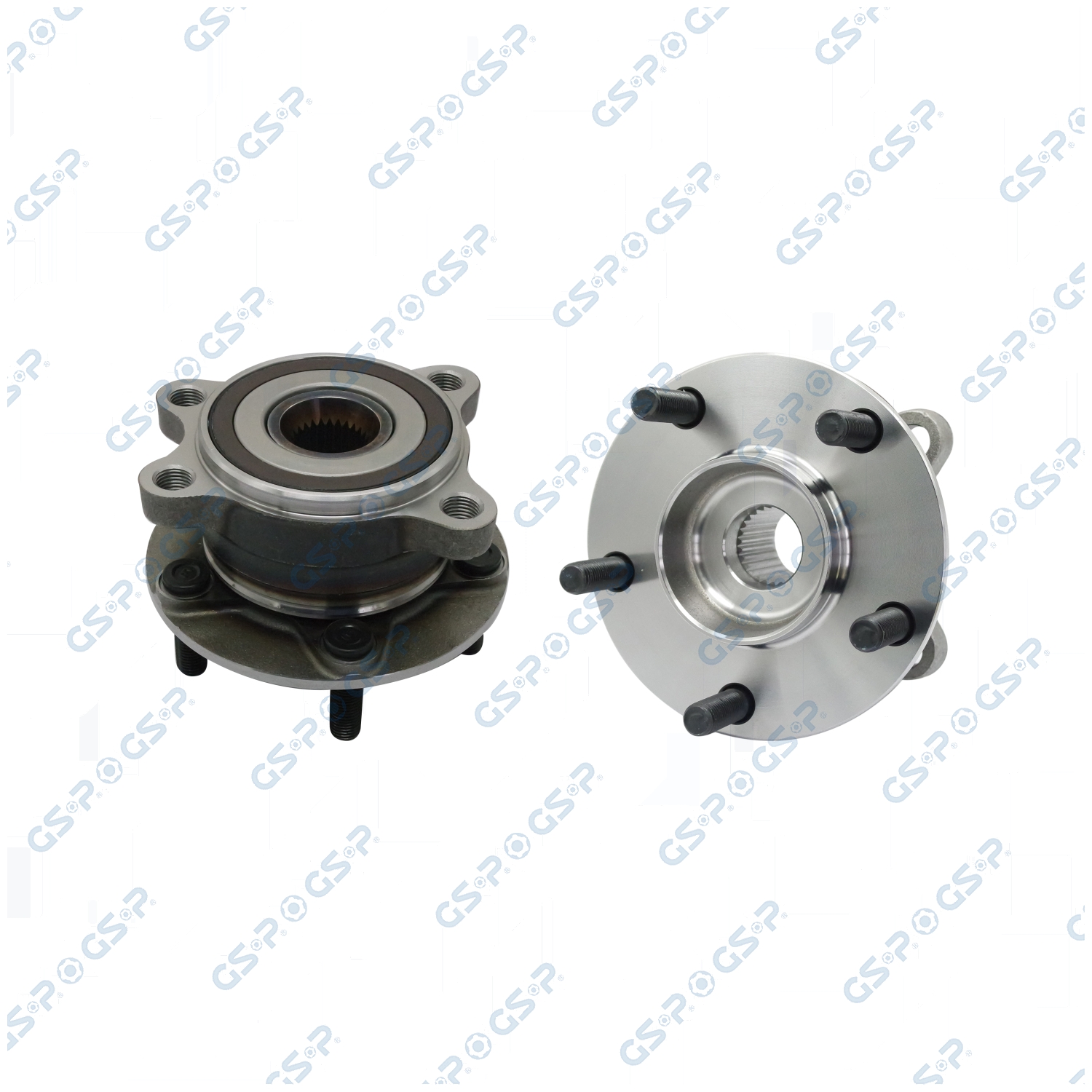

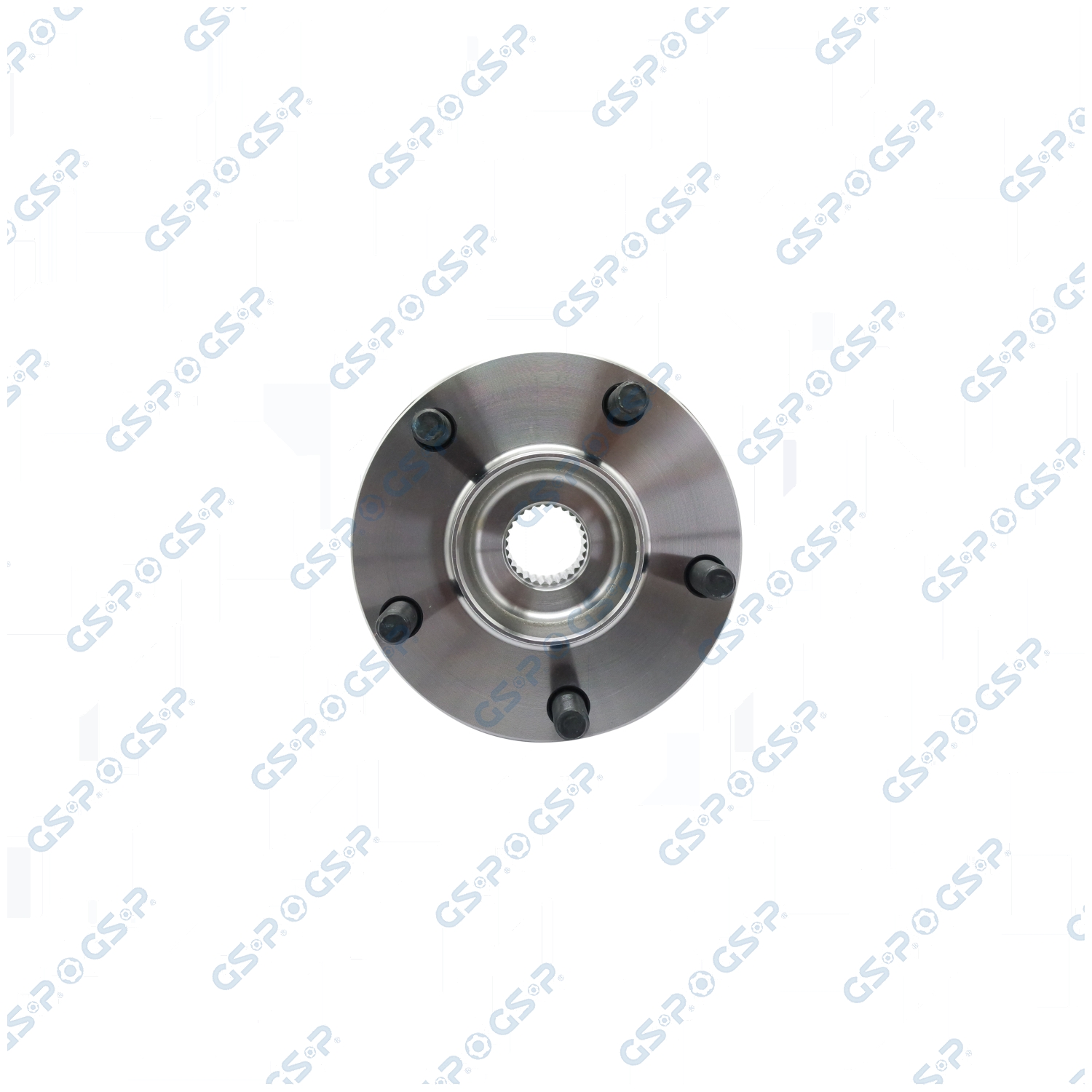

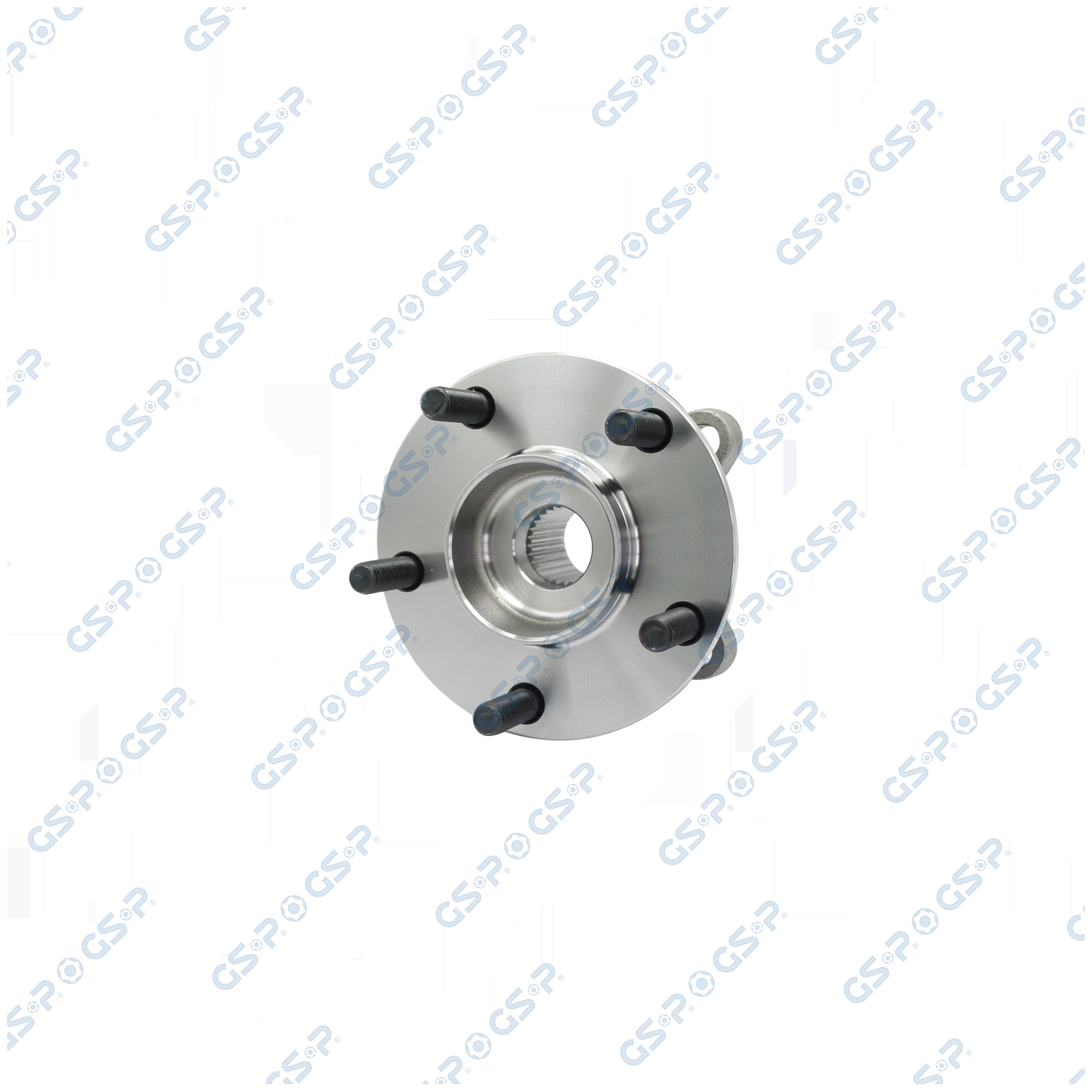

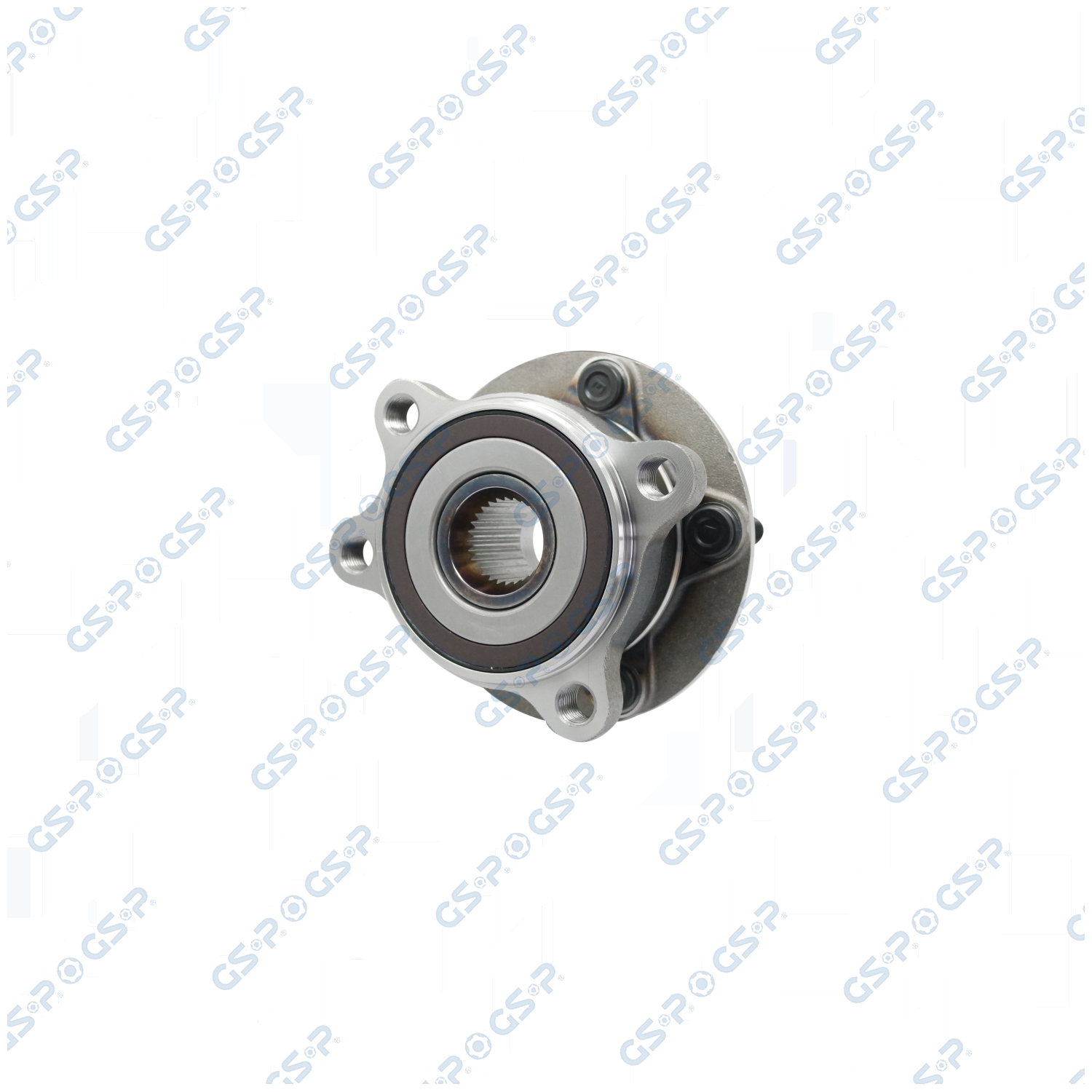

Mazda Wheel Bearing and Hub Assembly - Front
SPECIFICATIONS
ABS Tone Ring Tooth Quantity
48
Anti Lock Braking System Type
Encoder
Bearing Type
Ball
Brake Pilot Diameter
68
Flange Bolt Hole Quantity
5
Flange Offset
58.7
Prop 65 Yes/No
Yes
Wheel Pilot Diameter
67
Anti Lock Braking System
Yes
Bearing Generation
Gen 3
Bolt Circle Diameter
114.3
California Proposition 65
Yes
Flange Diameter
138.8
Hub Pilot Diameter
94
Spline Quantity
28
Wheel Stud Thread Size
M12x1.5
FEATURES & BENEFITS
APPLICATIONS
Year Range | Make | Model | SubModels | Position |
|---|---|---|---|---|
2025-2025 | Mazda | CX-70 | Front | |
2024-2025 | Mazda | CX-90 | Front | |
2022-2023 | Mazda | MX-30 EV | Front |
