04-10 BMW X3 CV Axle Assembly - Front Left
SPECIFICATIONS
ABS Tone Ring Included
No
Axle Nut Length
0.63
Axle Nut Type
Bihexagonal
Boot Material
Neoprene

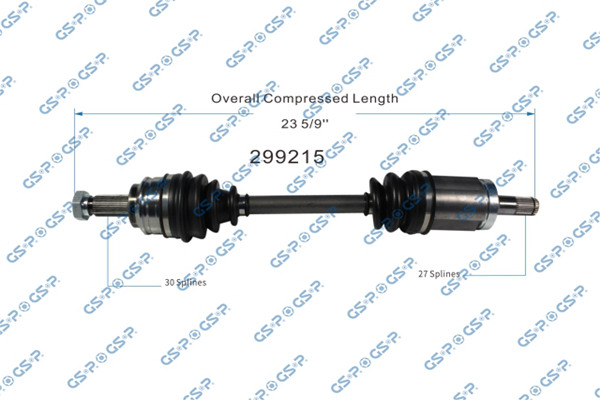

Compressed Length
23.54
Inboard Spline Quantity
27
Outboard Spline Quantity
30
Seal Diameter
2.55
Axle Nut Included
Yes
Axle Nut Thread Size
M27×1.5
Boot Color
Black
California Proposition 65
Yes
Inboard Joint Type
Male
Outboard Joint Type
Conventional
Prop 65 Yes/No
Yes
FEATURES & BENEFITS
APPLICATIONS
Year Range | Make | Model | SubModels | Position |
|---|---|---|---|---|
2009-2010 | BMW | X3 | Front Left | |
2008-2008 | BMW | X3 | 3.0si | Front Left |
2007-2007 | BMW | X3 | Front Left | |
2006-2006 | BMW | X3 | 3.0i | Front Left |
2004-2005 | BMW | X3 | Front Left |
