04-07 Suzuki Aerio CV Axle Assembly - Front Right
SPECIFICATIONS
ABS Tone Ring Included
Yes
Axle Nut Included
Yes
Axle Nut Socket Size
30
Axle Nut Type
Hex
Compressed Length
619
Inboard Spline Quantity
26
Outboard Spline Quantity
25
ABS Tone Ring Tooth Quantity
42
Axle Nut Length
20
Axle Nut Thread Size
M18×1.5
Boot Material
Neoprene
Inboard Joint Type
Female

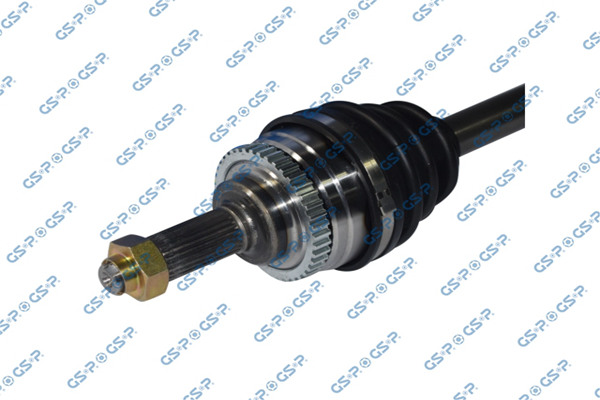

Outboard Joint Type
Conventional
FEATURES & BENEFITS
APPLICATIONS
Year Range | Make | Model | SubModels | Position |
|---|---|---|---|---|
2006-2007 | Suzuki | Aerio | Base, Premium | Front Right |
2006-2006 | Suzuki | Aerio | SX Premium, SX | Front Right |
2004-2005 | Suzuki | Aerio | Front Right |
