Subaru (Sedan/Wagon) CV Axle Assembly
SPECIFICATIONS
ABS Tone Ring Included
Yes
Axle Nut Included
Yes
Axle Nut Thread Size
M22×1.5
Boot Color
Black
California Proposition 65
Yes
Inboard Joint Type
Male
Outboard Joint Type
Conventional
Prop 65 Yes/No
Yes
ABS Tone Ring Tooth Quantity
44
Axle Nut Length
0.79
Axle Nut Type
Hex
Boot Material
Neoprene

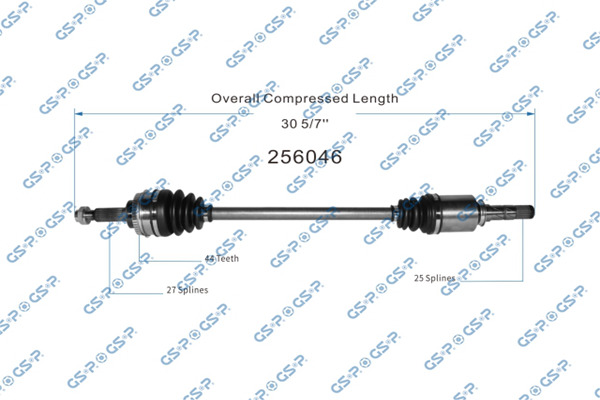

Compressed Length
30.71
Inboard Spline Quantity
25
Outboard Spline Quantity
27
Seal Diameter
2.20
FEATURES & BENEFITS
APPLICATIONS
Year Range | Make | Model | SubModels | Position |
|---|---|---|---|---|
2006-2006 | Subaru | Impreza | 2.5i | Front Right, Front Left |
2005-2007 | Subaru | Impreza | Outback Sport | Front Left, Front Right |
2005-2006 | Subaru | Impreza | WRX | Front Left, Front Right |
2005-2005 | Subaru | Impreza | RS | Front Left, Front Right |
2004-2004 | Subaru | Impreza | WRX, RS | Front Right, Front Left |
2003-2008 | Subaru | Forester | Front Right, Front Left |
