Countryside Road

Mercedes-Benz CV Axle Assembly - Rear

Part Number:

235133

Product Type:

CV Components

SPECIFICATIONS

ABS Tone Ring Included

Yes

Axle Nut Included

Yes

Axle Nut Socket Size

34

Axle Nut Type

Bihexagonal

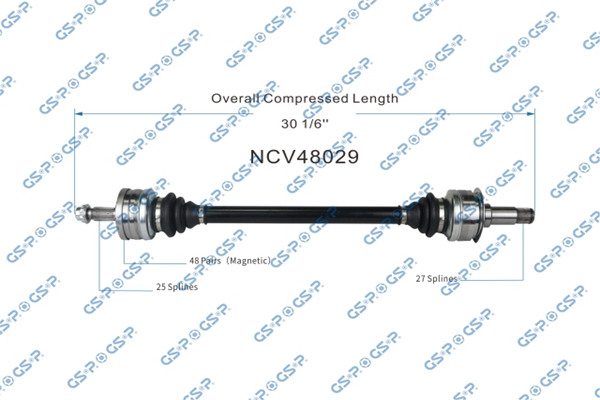

Compressed Length

30.16

Inboard Spline Quantity

27

Outboard Spline Quantity

25

ABS Tone Ring Tooth Quantity

48

Axle Nut Length

17

Axle Nut Thread Size

M24×1.5

Boot Material

Neoprene

Inboard Joint Type

Male

Outboard Joint Type

Conventional

FEATURES & BENEFITS

APPLICATIONS

Year Range
Make
Model
SubModels
Position
2005-2005
Mercedes-Benz
C320
Base
Rear
2004-2005
Mercedes-Benz
C240
Base
Rear
2004-2005
Mercedes-Benz
C230
Kompressor
Rear
2003-2003
Mercedes-Benz
C240
Rear
2003-2005
Mercedes-Benz
C320
4Matic
Rear
2003-2003
Mercedes-Benz
C230
Rear
