Countryside Road

08-09 Mazda 3 (2.0, 2.3) CV Axle Assembly - Front Right

Part Number:

234092

Product Type:

CV Components

SPECIFICATIONS

ABS Tone Ring Included

NO

Axle Nut Length

21

Axle Nut Thread Size

M22×1.5

Boot Color

Black

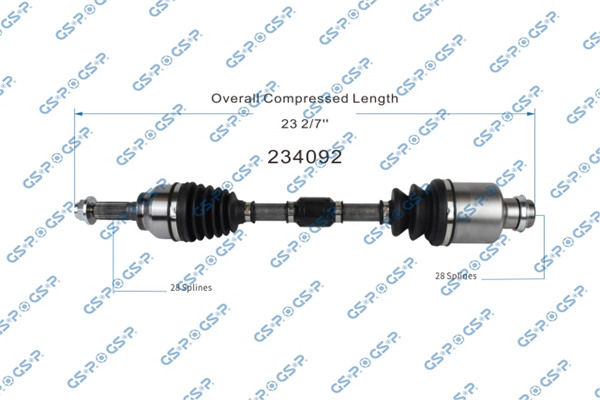

Compressed Length

23.31

Inboard Spline Quantity

28

Outboard Spline Quantity

28

Axle Nut Included

Yes

Axle Nut Socket Size

32

Axle Nut Type

Hex

Boot Material

Neoprene

Inboard Joint Type

Female

Outboard Joint Type

Conventional

FEATURES & BENEFITS

APPLICATIONS

Year Range
Make
Model
SubModels
Position
2009-2009
Mazda
3
S
Front Right
2008-2009
Mazda
3
i
Front Right
