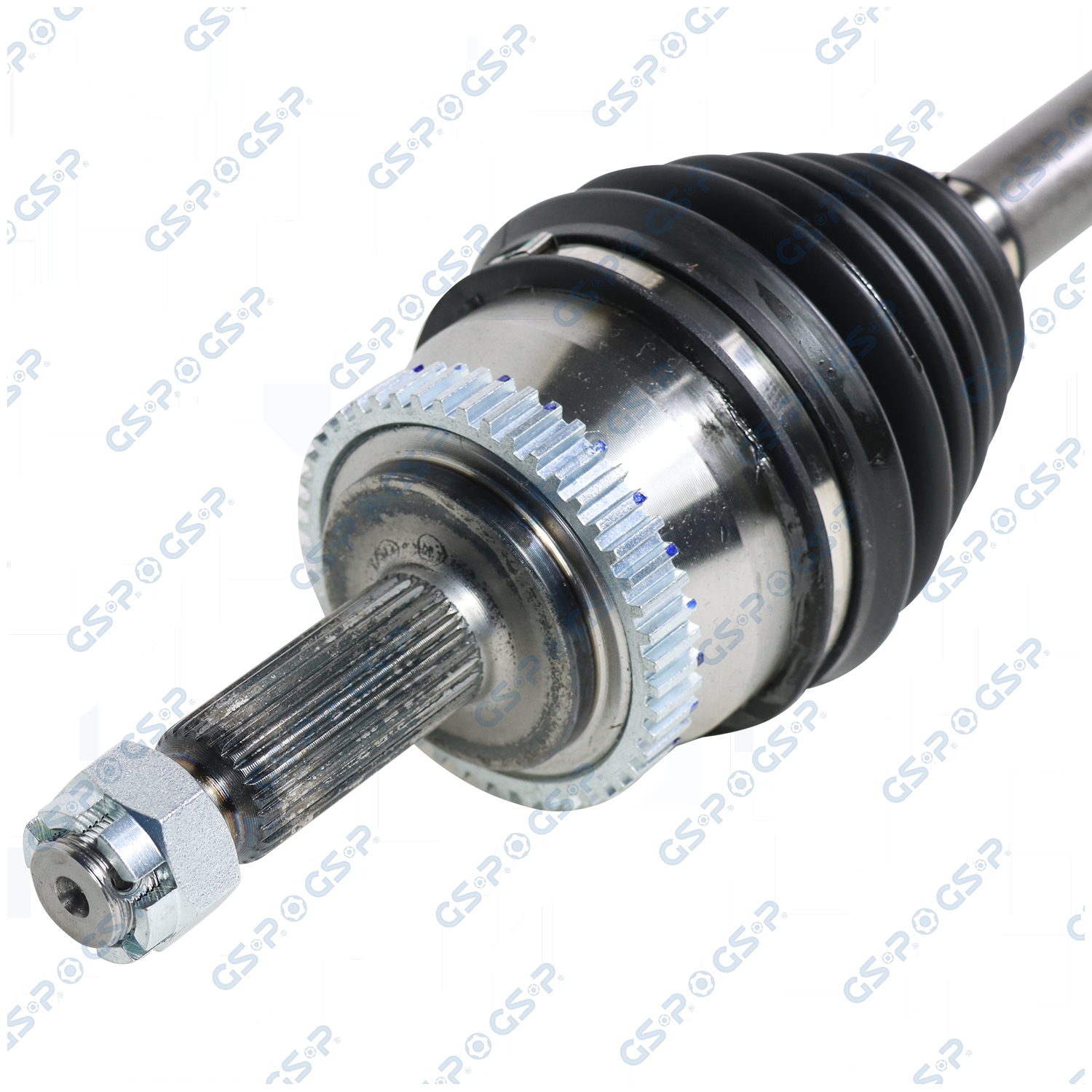

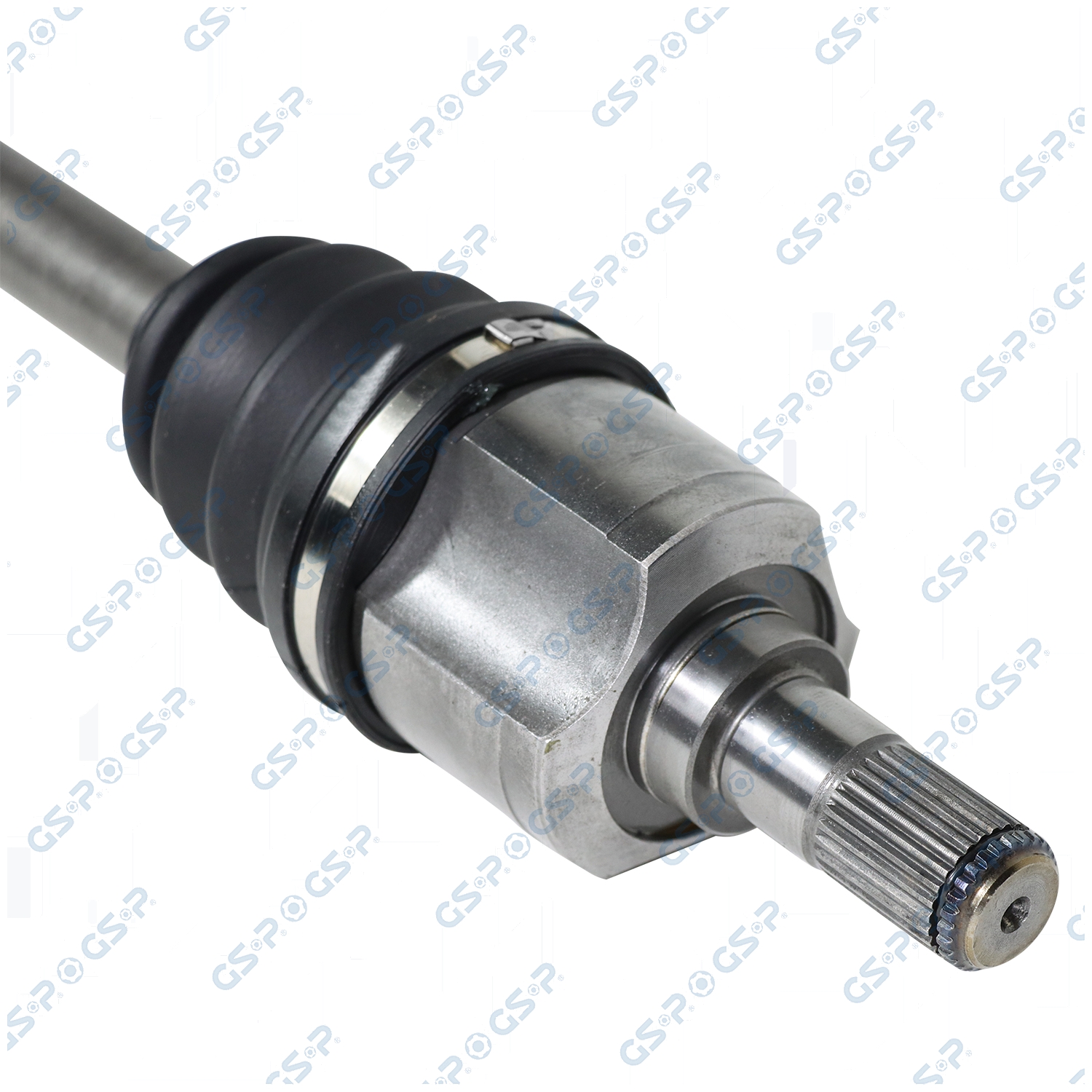

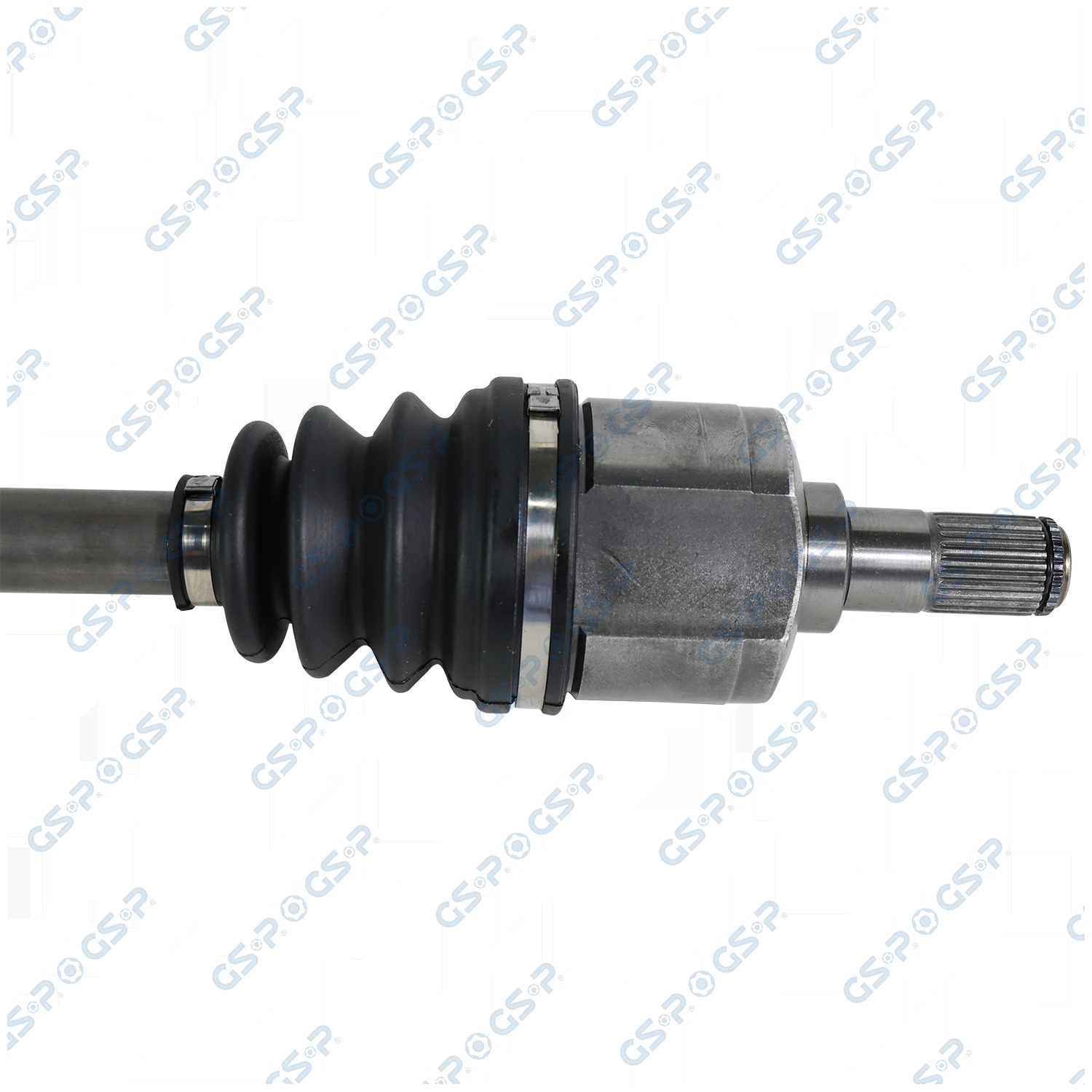

08-12 Kia Rondo (2.7) CV Axle Assembly - Front Left
SPECIFICATIONS
ABS Tone Ring Included
Yes
Axle Nut Included
Yes
Axle Nut Socket Size
31.5
Axle Nut Type
Hex
Compressed Length
672
Inboard Spline Quantity
27
Outboard Spline Quantity
27
ABS Tone Ring Tooth Quantity
48
Axle Nut Length
21
Axle Nut Thread Size
M22×1.5
Boot Material
Neoprene
Inboard Joint Type
Male
Outboard Joint Type
Conventional
FEATURES & BENEFITS
APPLICATIONS
Year Range | Make | Model | SubModels | Position |
|---|---|---|---|---|
2012-2012 | Kia | Rondo | Front Left | |
2011-2011 | Kia | Rondo | EX Luxury | Front Left |
2009-2010 | Kia | Rondo | Front Left | |
2008-2008 | Kia | Rondo | LX, EX | Front Left |
