Countryside Road

12-15 Honda Pilot CV Axle Assembly - Front Right

Part Number:

223347

Product Type:

CV Components

SPECIFICATIONS

ABS Tone Ring Included

NO

Axle Nut Length

17

Axle Nut Thread Size

M26×1.5

Boot Material

Neoprene

Inboard Joint Type

Male

Outboard Joint Type

Conventional

Axle Nut Included

Yes

Axle Nut Socket Size

33

Axle Nut Type

Bihexagonal

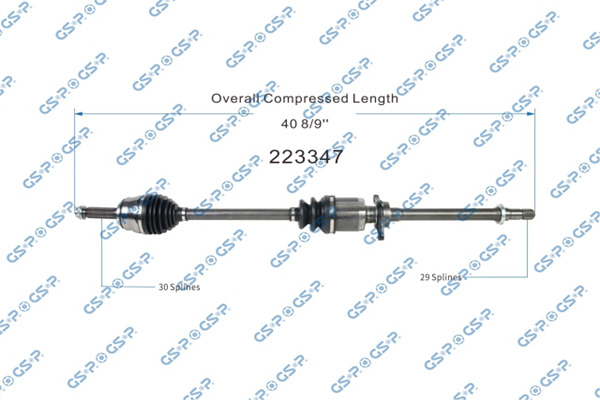

Compressed Length

40.91

Inboard Spline Quantity

29

Outboard Spline Quantity

30

FEATURES & BENEFITS

APPLICATIONS

Year Range
Make
Model
SubModels
Position
