Countryside Road

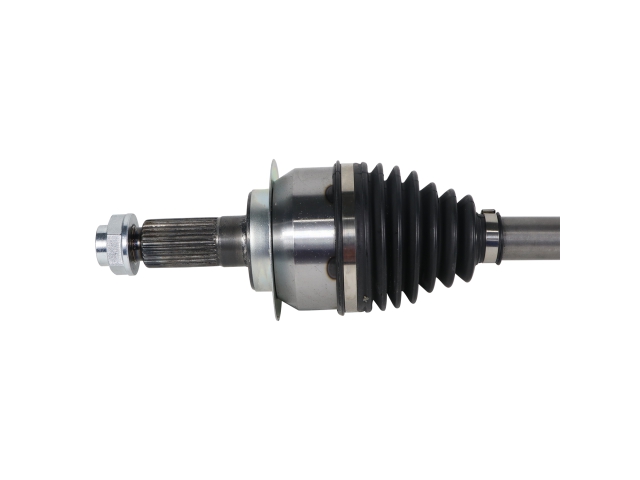

13-16 Suzuki Swift CV Axle Assembly - Front Right

Part Number:

204283

Product Type:

CV Components

SPECIFICATIONS

ABS Tone Ring Included

NO

Axle Nut Length

20

Axle Nut Thread Size

M22×1.5

Boot Material

Neoprene

Inboard Joint Type

Female

Outboard Joint Type

Conventional

Axle Nut Included

Yes

Axle Nut Socket Size

32

Axle Nut Type

Hex

Compressed Length

22.83

Inboard Spline Quantity

26

Outboard Spline Quantity

28

FEATURES & BENEFITS

APPLICATIONS

Year Range
Make
Model
SubModels
Position
2013-2016
Suzuki
Swift
Front Right
