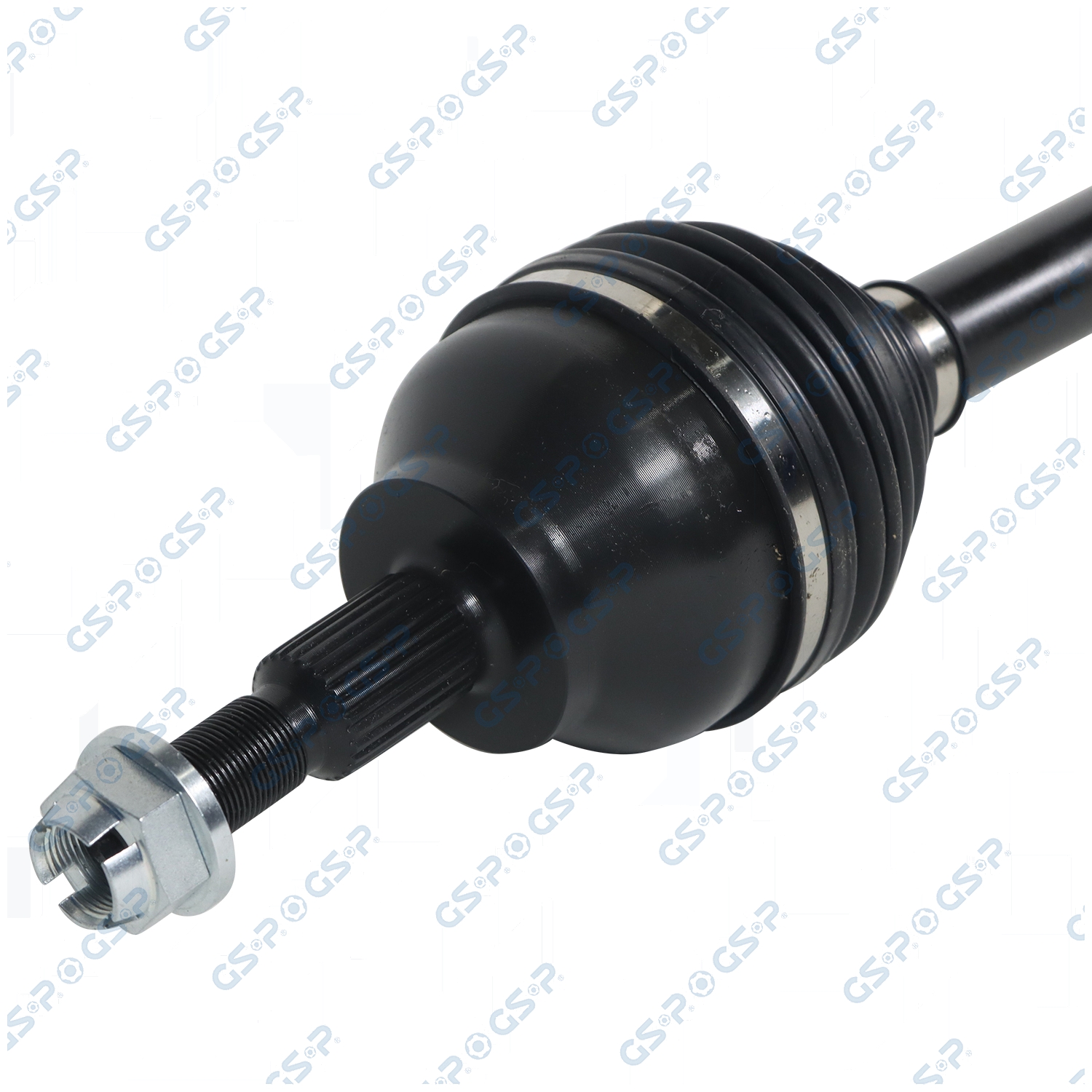

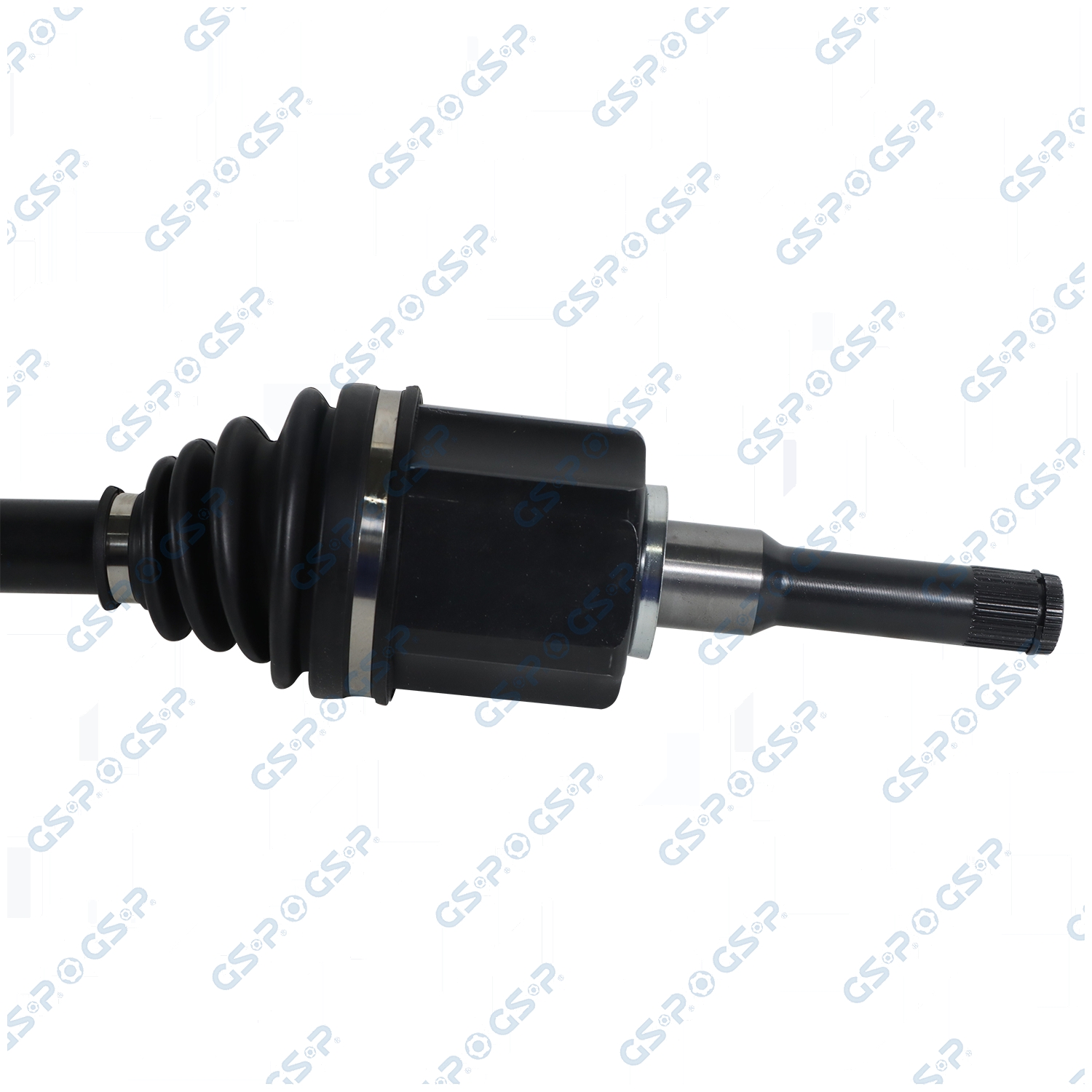

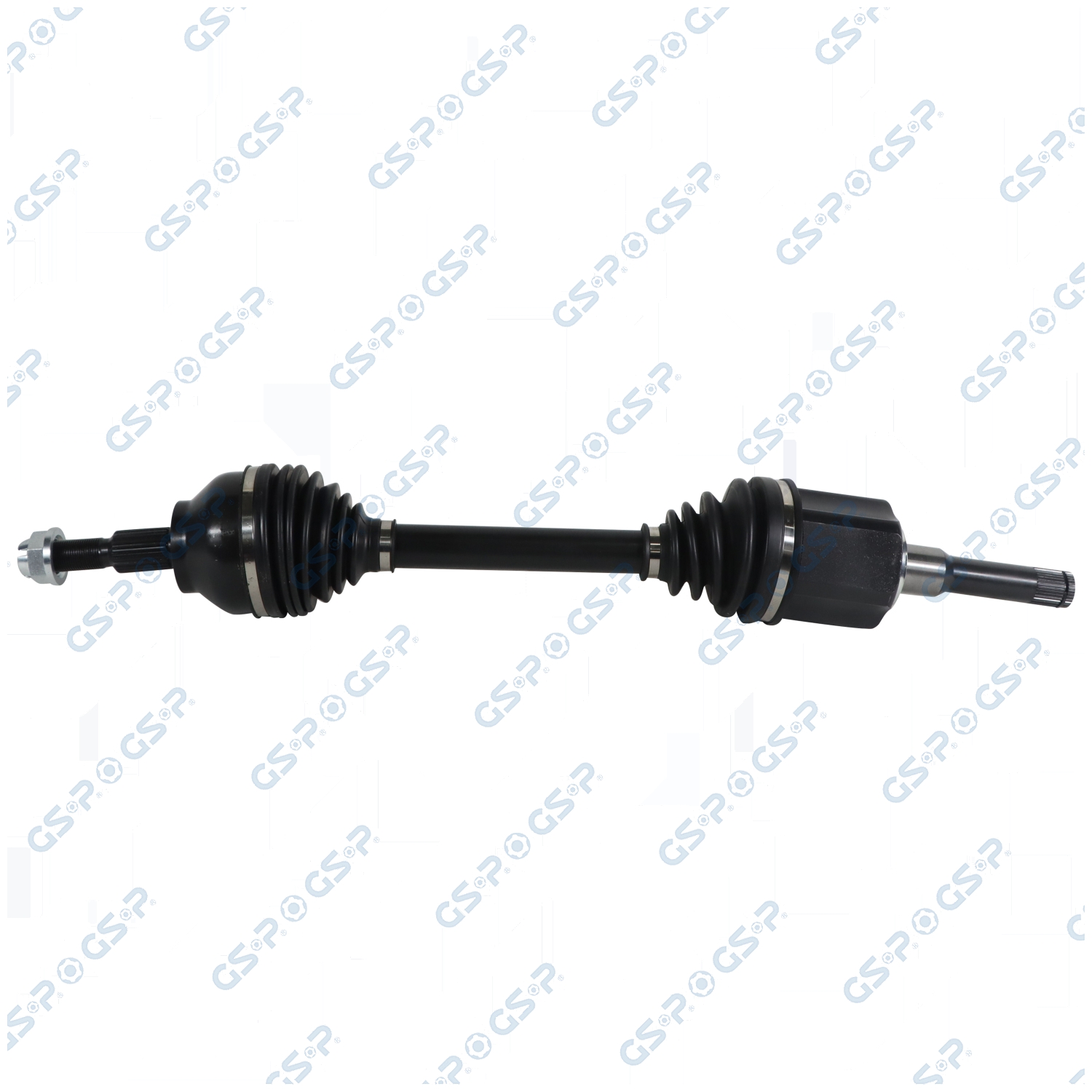

CV Axle Assembly
SPECIFICATIONS
ABS Tone Ring Included
NO
Axle Nut Length
24.8
Axle Nut Thread Size
M22×1.5
Boot Material
Neoprene
Inboard Joint Type
Male
Outboard Joint Type
Conventional
Axle Nut Included
Yes
Axle Nut Socket Size
32
Axle Nut Type
Hex
Compressed Length
707
Inboard Spline Quantity
35
Outboard Spline Quantity
27
FEATURES & BENEFITS
APPLICATIONS
Year Range | Make | Model | SubModels | Position |
|---|---|---|---|---|
2017-2019 | Lincoln | MKC | Front Left | |
2016-2016 | Lincoln | MKC | Select, Reserve, Black Label, Premiere | Front Left |
2015-2015 | Lincoln | MKC | Front Left |
