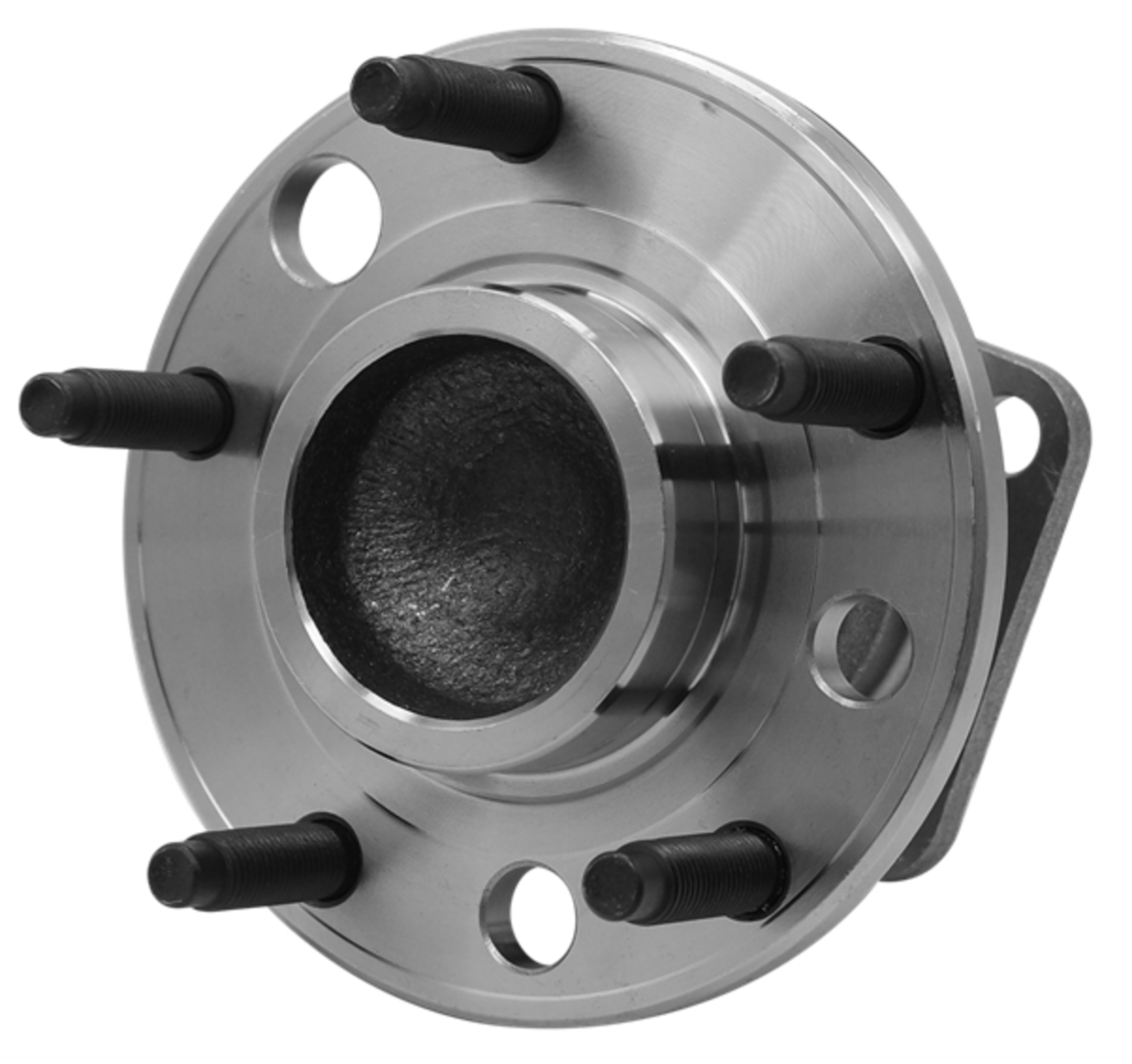

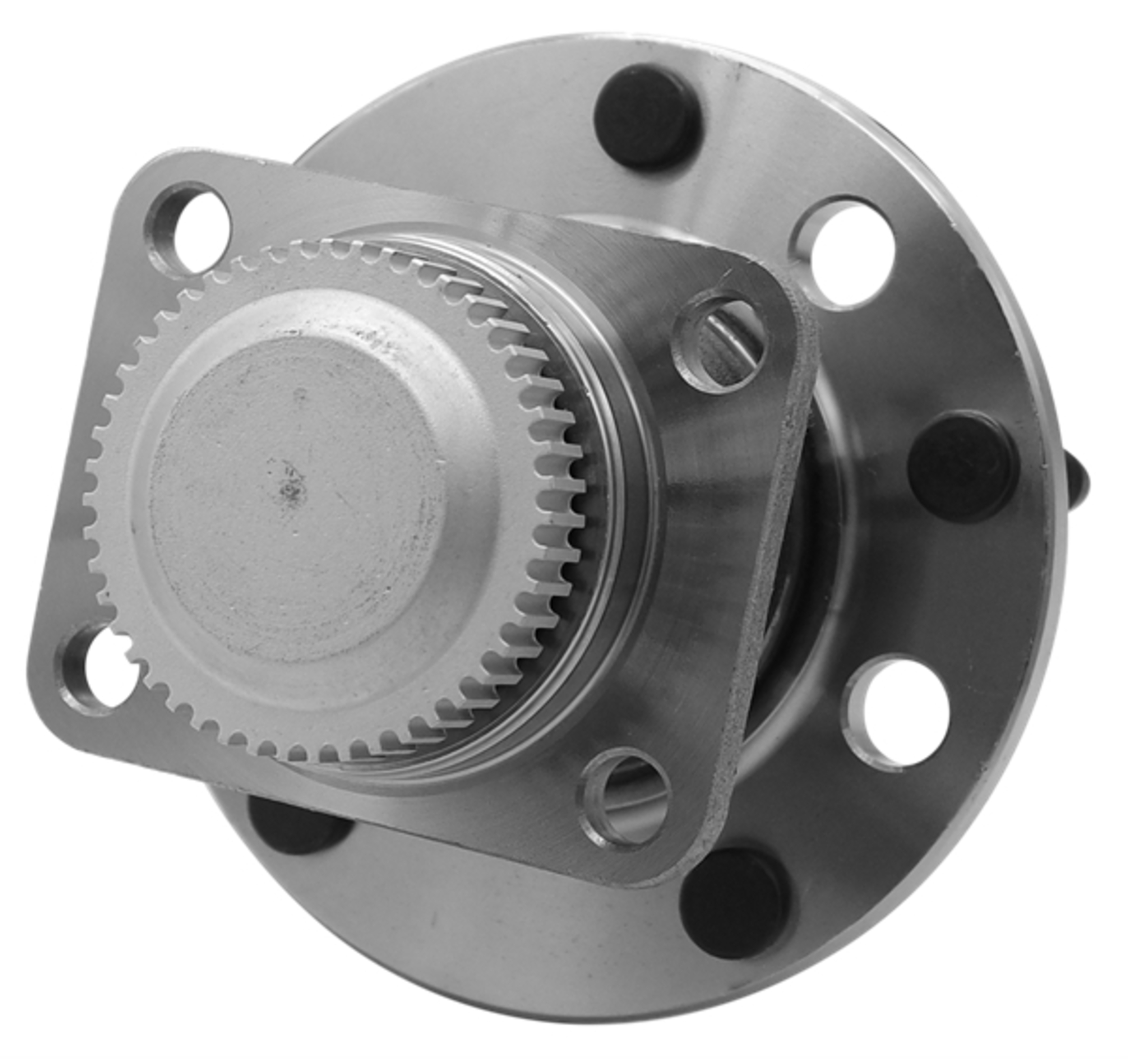

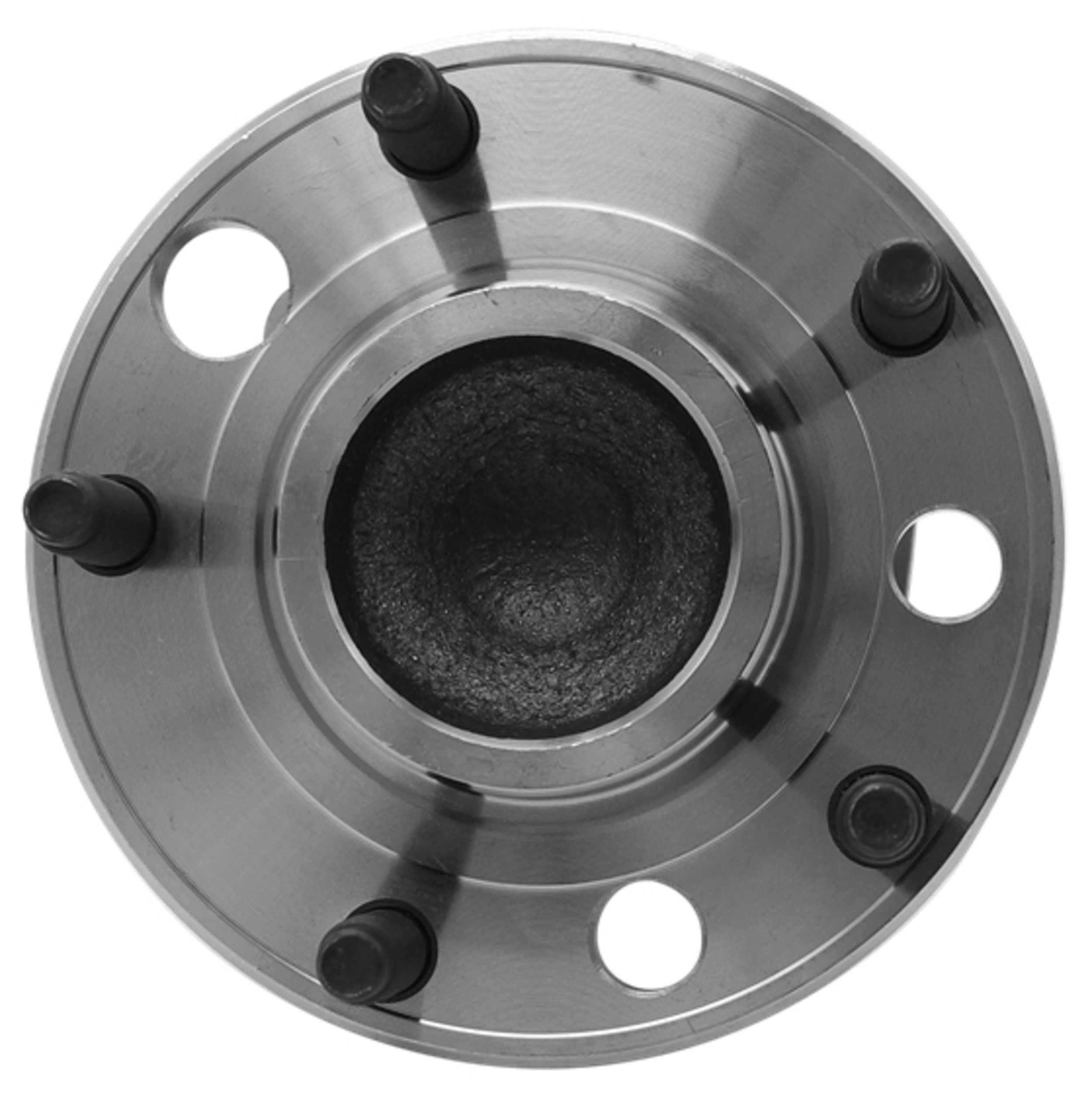

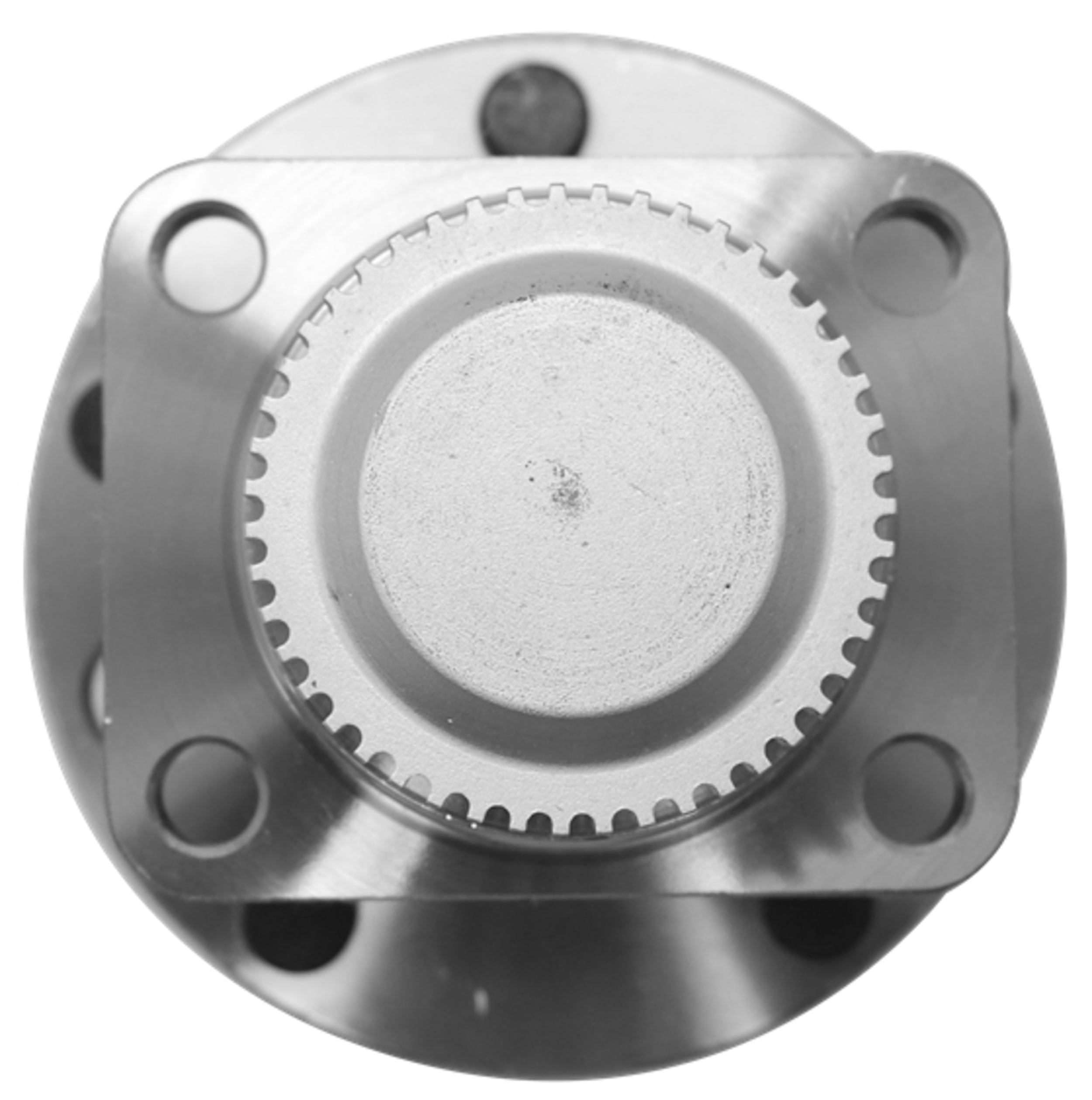

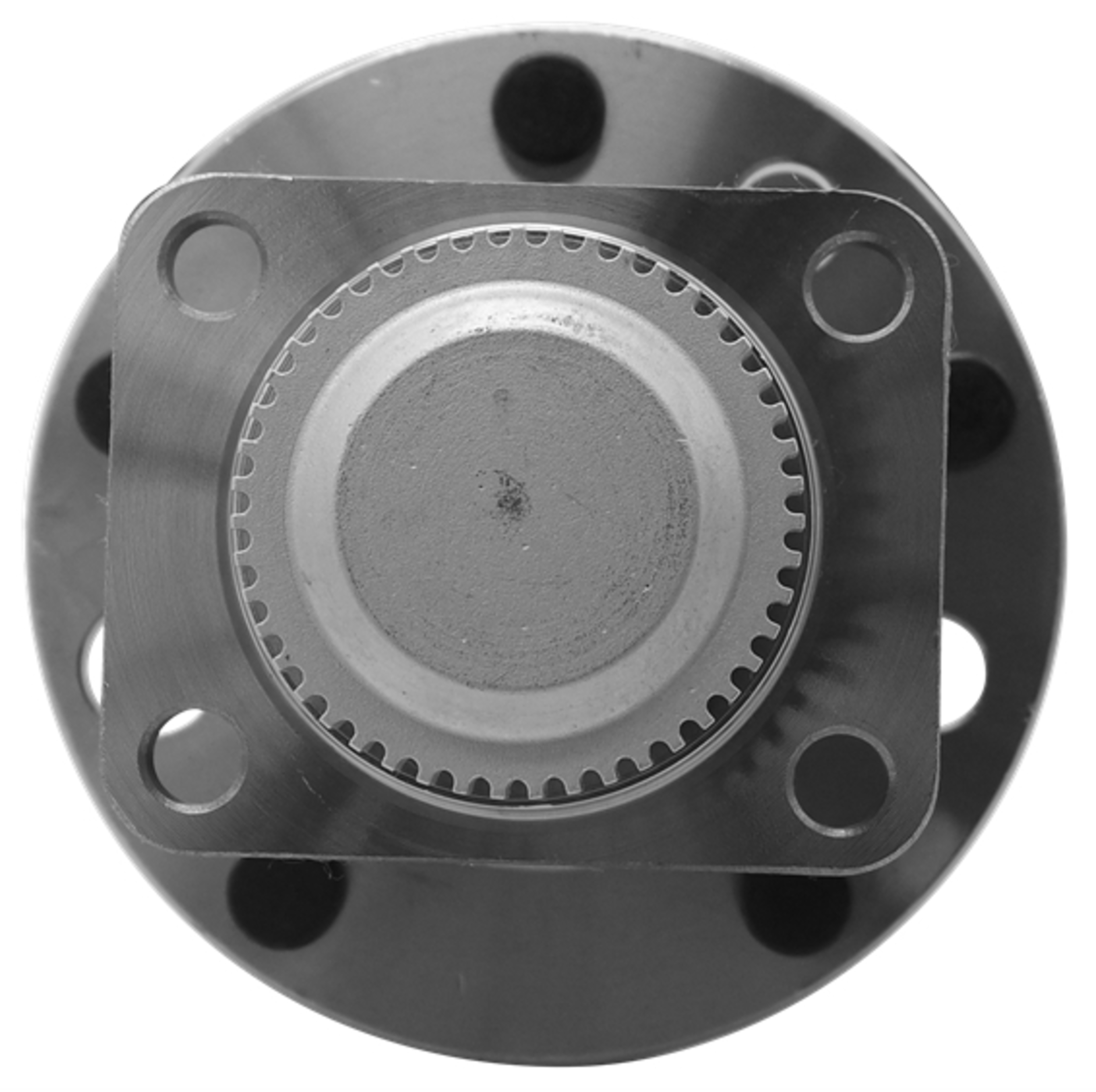

84-90 Chevrolet Corvette Wheel Bearing and Hub Assembly - Front

Part Number:

9400025

Product Type:

Hubs and Related Components

SPECIFICATIONS

ABS Tone Ring Tooth Quantity

47

Anti Lock Braking System Type

Tone Ring

Bearing Type

Ball

Bolt Thread Pitch

M12x1.5

Brake Pilot Diameter

70.63

Flange Bolt Hole Quantity

4

Flange Diameter

146.5

Flange Offset

69.088

Wheel Pilot Diameter

70.14

Wheel Studs Included

Yes

Anti Lock Braking System

Yes

Bearing Generation

Gen 3

Bolt Circle Diameter

120.65

Bolts Included

No

Driven Type

Non-driven

Flange Bolts Included

No

Flange Included

Yes

Hub Pilot Diameter

71.72

Wheel Stud Quantity

5

FEATURES & BENEFITS

APPLICATIONS

Year Range
Make
Model
SubModels
Position
1990-1990
Chevrolet
Corvette
ZR-1
Front
1988-1988
Chevrolet
Corvette
35th Anniversary Edition
Front
1986-1986
Chevrolet
Corvette
Indianapolis 500 Pace Car
Front
1984-1990
Chevrolet
Corvette
Base
Front
