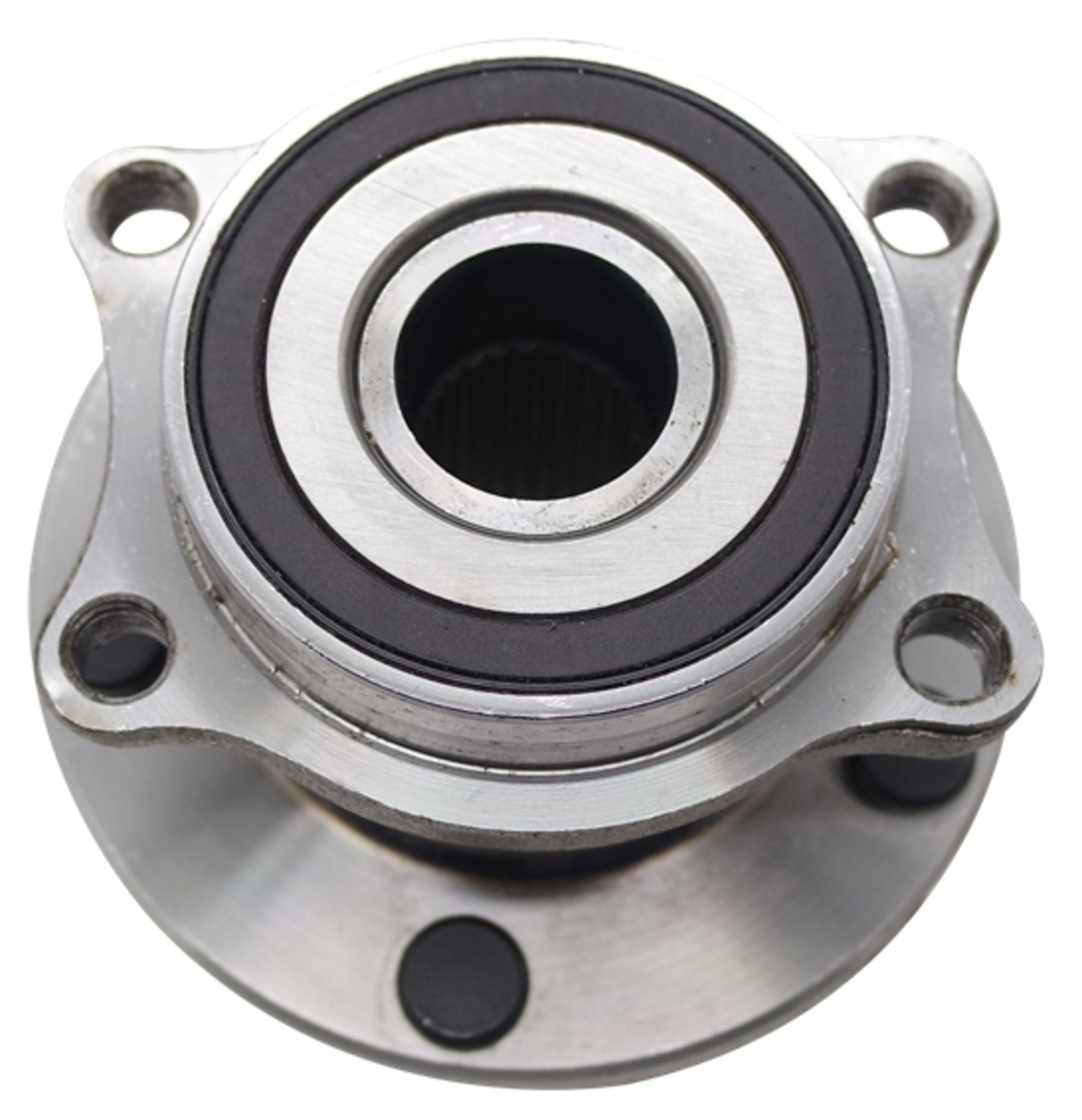

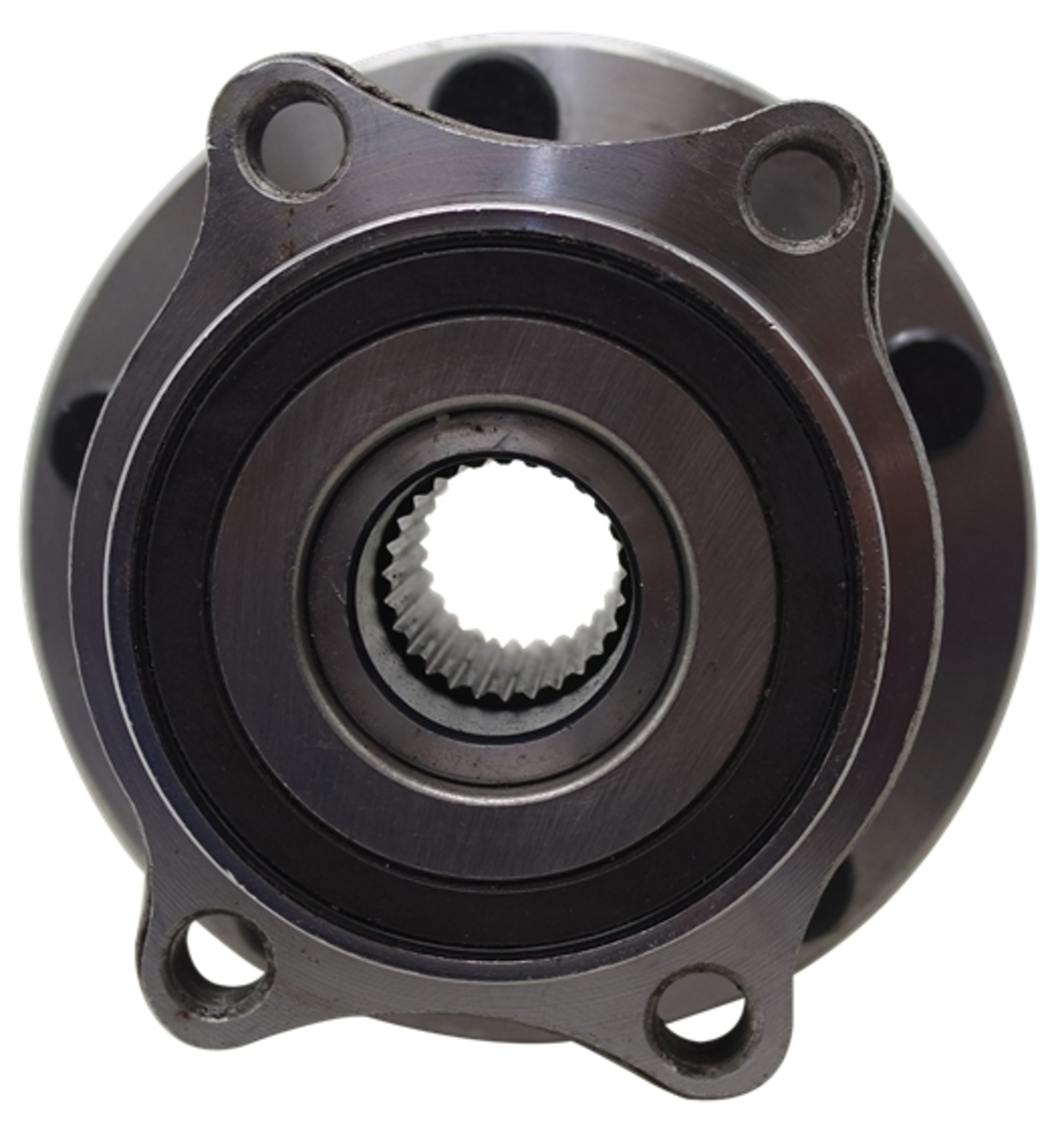

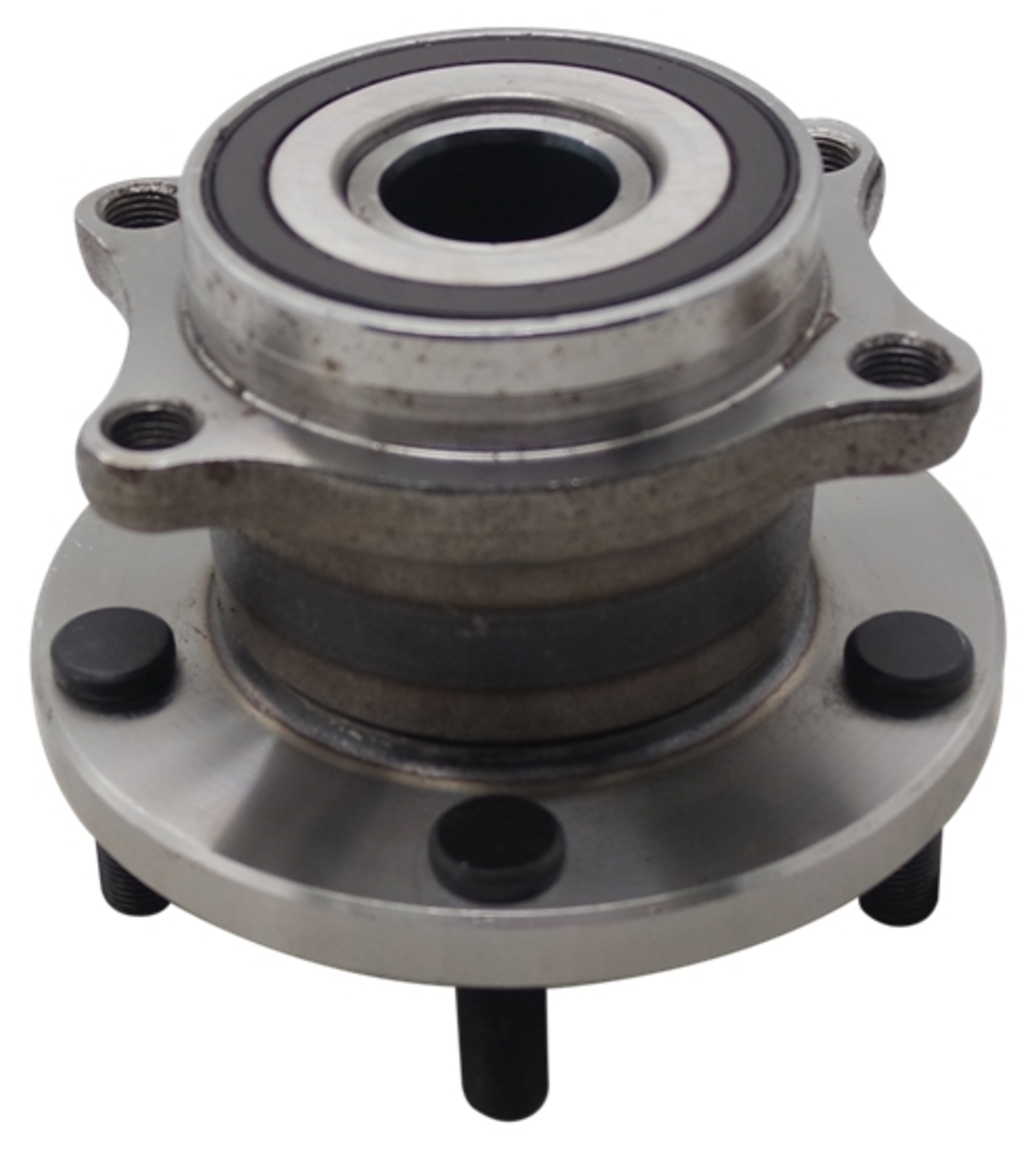

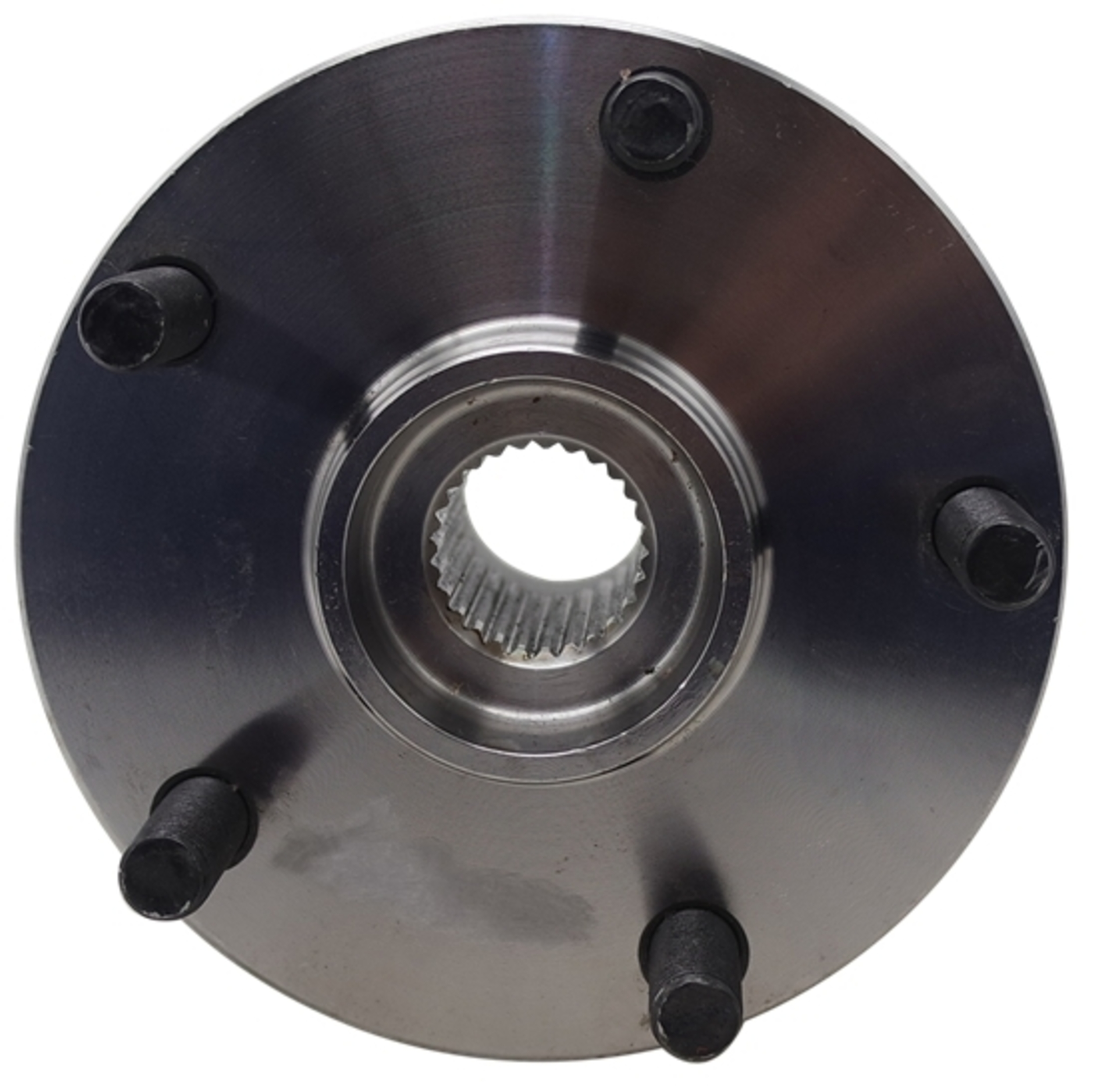

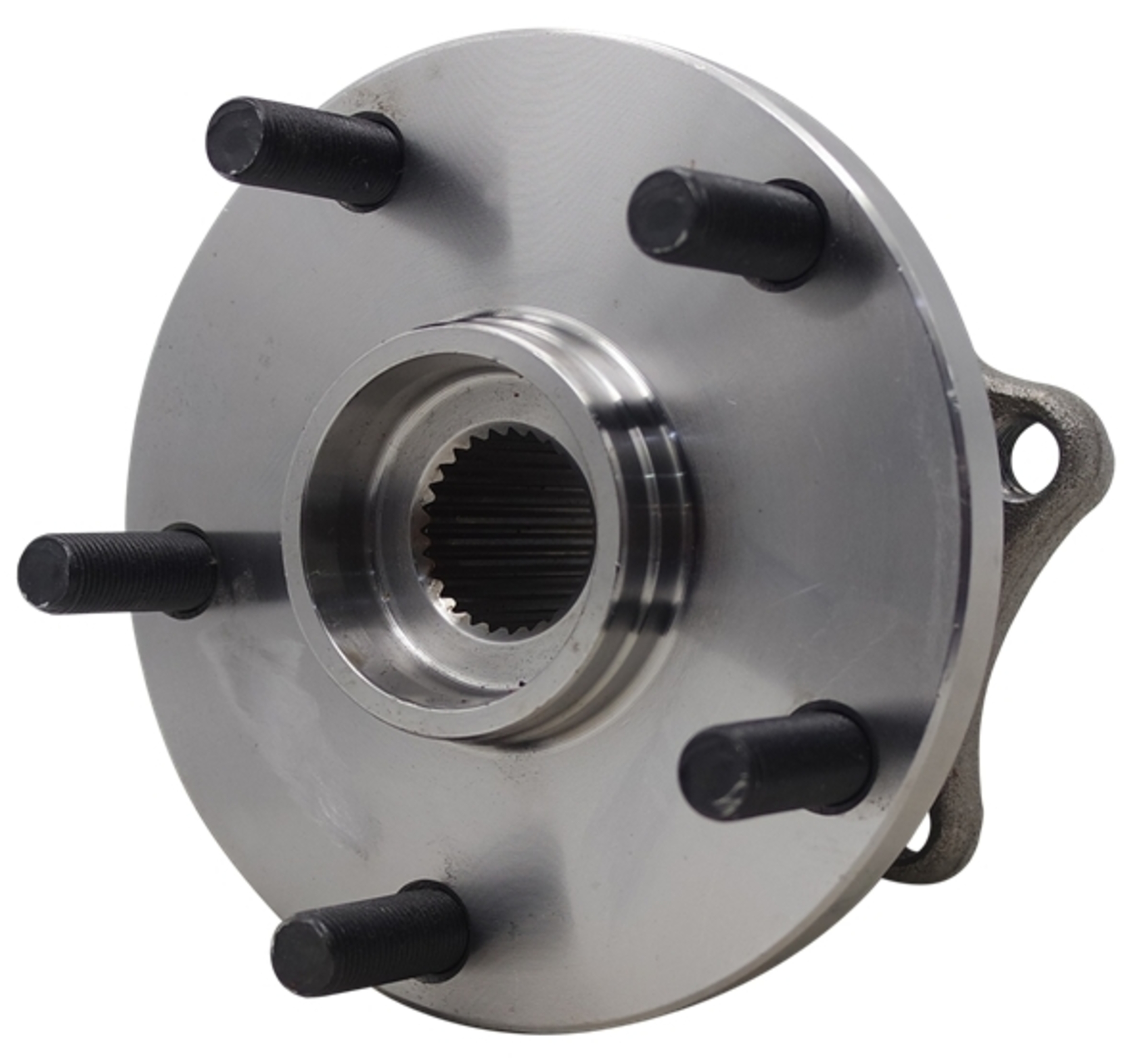

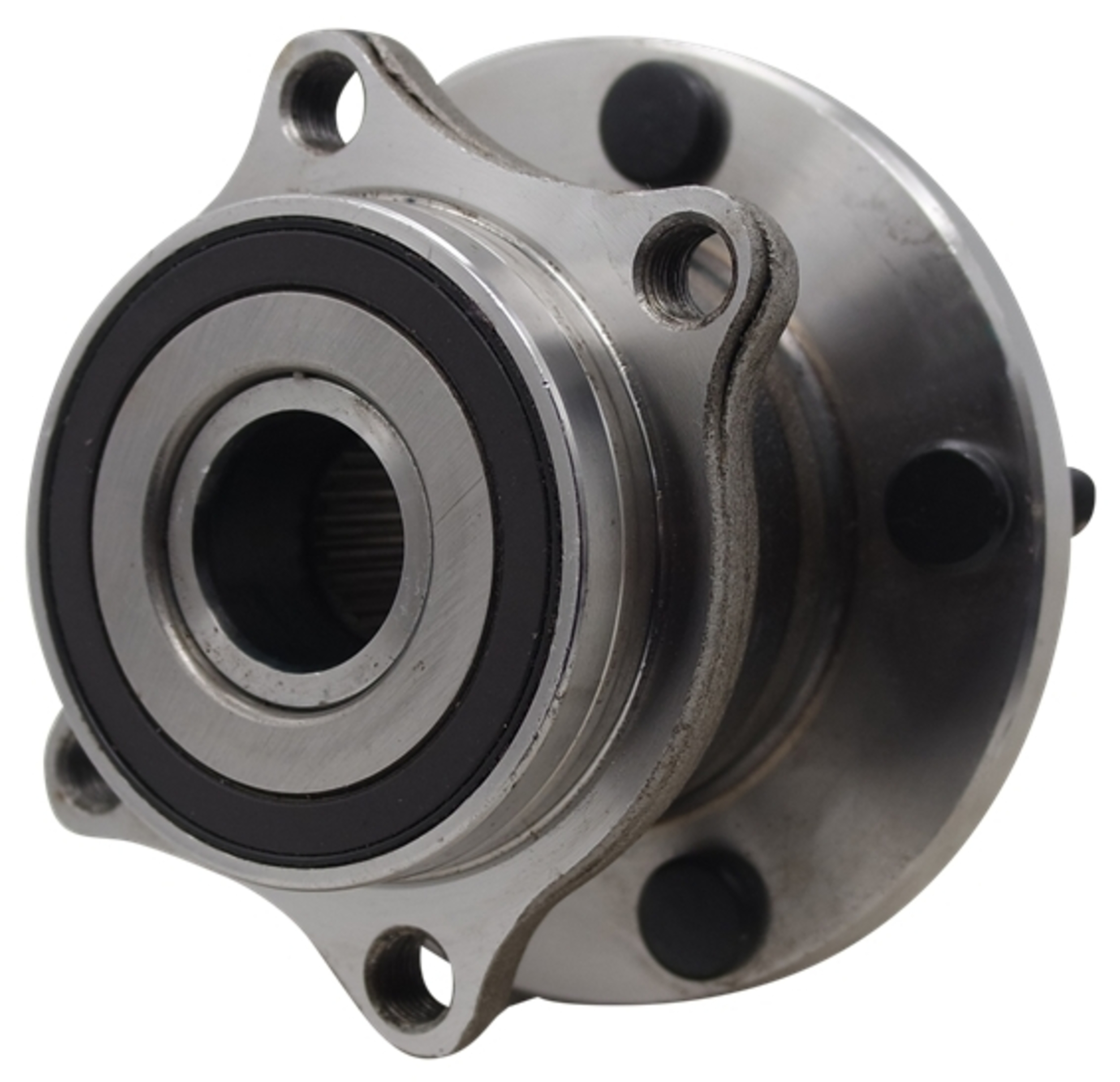

Subaru Wheel Bearing and Hub Assembly - Rear
SPECIFICATIONS
ABS Tone Ring Tooth Quantity
48
Anti Lock Braking System Type
Encoder
Bearing Type
Ball
Bolt Thread Pitch
M12x1.25
Brake Pilot Diameter
58
Flange Bolt Hole Quantity
4
Flange Diameter
138
Flange Offset
63.5
Spline Quantity
27
Wheel Stud Quantity
5
Anti Lock Braking System
Yes
Bearing Generation
Gen 3
Bolt Circle Diameter
114.3
Bolts Included
No
Driven Type
Driven
Flange Bolts Included
No
Flange Included
Yes
Hub Pilot Diameter
84
Wheel Pilot Diameter
56
Wheel Studs Included
Yes
FEATURES & BENEFITS
APPLICATIONS
Year Range | Make | Model | SubModels | Position |
---|---|---|---|---|
2008-2014 | Subaru | Tribeca | Rear | |
2006-2007 | Subaru | B9 Tribeca | Rear |
