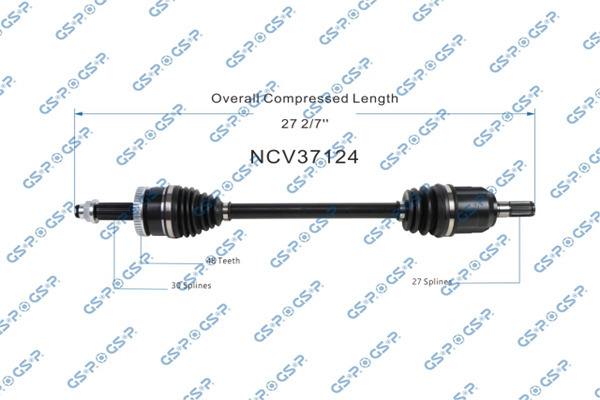

15-21 Hyundai Tucson CV Axle Assembly
SPECIFICATIONS
ABS Tone Ring Included
Yes
Axle Nut Included
Yes
Axle Nut Socket Size
32
Axle Nut Type
Hex
Compressed Length
27.28
Inboard Spline Quantity
27
Outboard Spline Quantity
30
ABS Tone Ring Tooth Quantity
48
Axle Nut Length
23
Axle Nut Thread Size
M24×1.5
Boot Material
Neoprene
Inboard Joint Type
Male
Outboard Joint Type
Conventional
FEATURES & BENEFITS
APPLICATIONS
Year Range | Make | Model | SubModels | Position |
|---|---|---|---|---|
2015-2021 | Hyundai | Tucson | Front Left |
